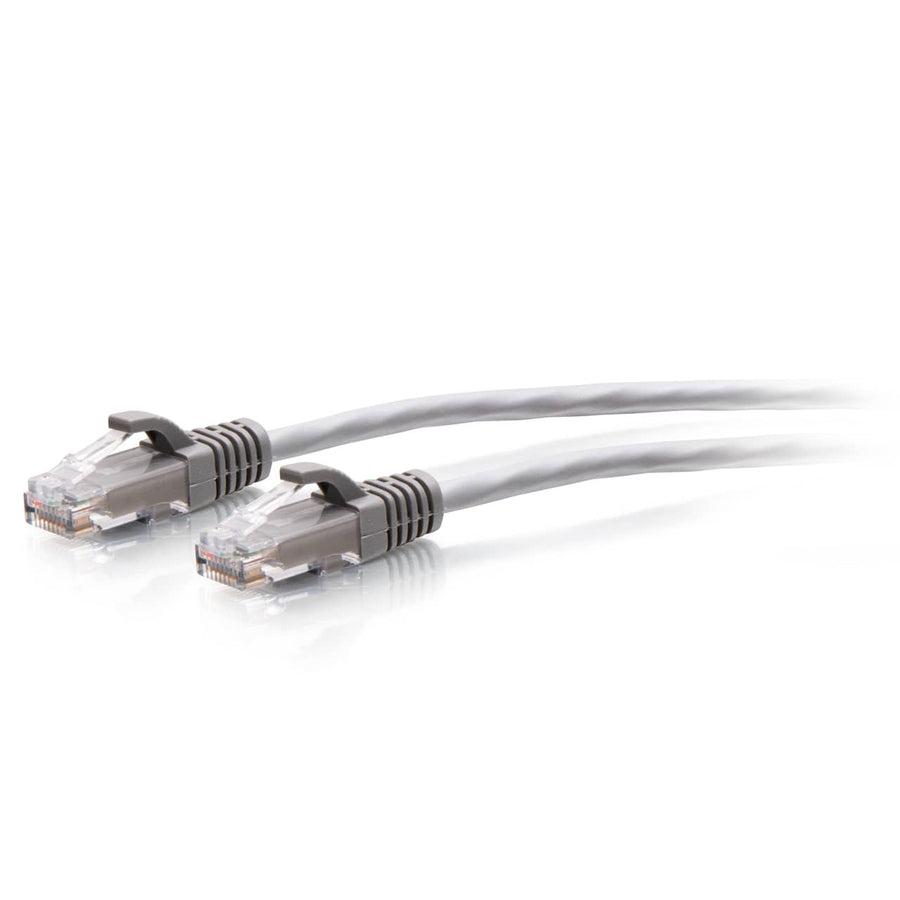

15ft (4.5m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
15ft Cat6a slim UTP patch cable, 28AWG snagless construction, 0.19 inch diameter for high-density installations
The C2G30122 is a 15ft (4.6 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed specifically for high-density cabling environments. Utilizing 28AWG stranded copper conductors, this slim cable features a reduced diameter of 0.19 in (4.8 mm), which increases airflow in crowded racks and provides greater flexibility for tight-space installations. This Cat6a cable supports data transfer rates up to 10 Gbps and is ideal for applications requiring HDBaseT technology, PoE, or VoIP. The construction includes RJ-45 male connectors with gold-plated contacts and a PVC snagless boot that provides strain relief while preventing accidental snags during installation. This UTP cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements, ensuring reliable 10Gbps performance. This gray patch cable is built with a PVC jacket and is NDAA 889 compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Shield Type | UTP |
| Shipping Weight | 0.63 lbs (0.3 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301226 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this C2G30122 cable work for PoE or VoIP applications?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) setups.
What is the maximum data rate for this Cat6a patch cable?
The C2G30122 supports data transfer rates up to 10 Gbps, providing significantly more bandwidth than Cat6 or Cat5e solutions.
How does the slim design help in high-density racks?
The 0.19 in (4.8 mm) diameter reduces the cable surface area, which allows for improved airflow and greater flexibility in tight spaces compared to standard Cat6 cables.
What is the difference between this and a standard Cat6 cable?
This is a Cat6a cable, which offers higher bandwidth than standard Cat6 and is built with 28AWG conductors for a much thinner profile and improved airflow.
Which documents are available for technical submittals?
You can access the Cat6a Slim Patch Cable Series Datasheet or the C2G Ethernet Patch Cable Matrix via the links in the resources section.
