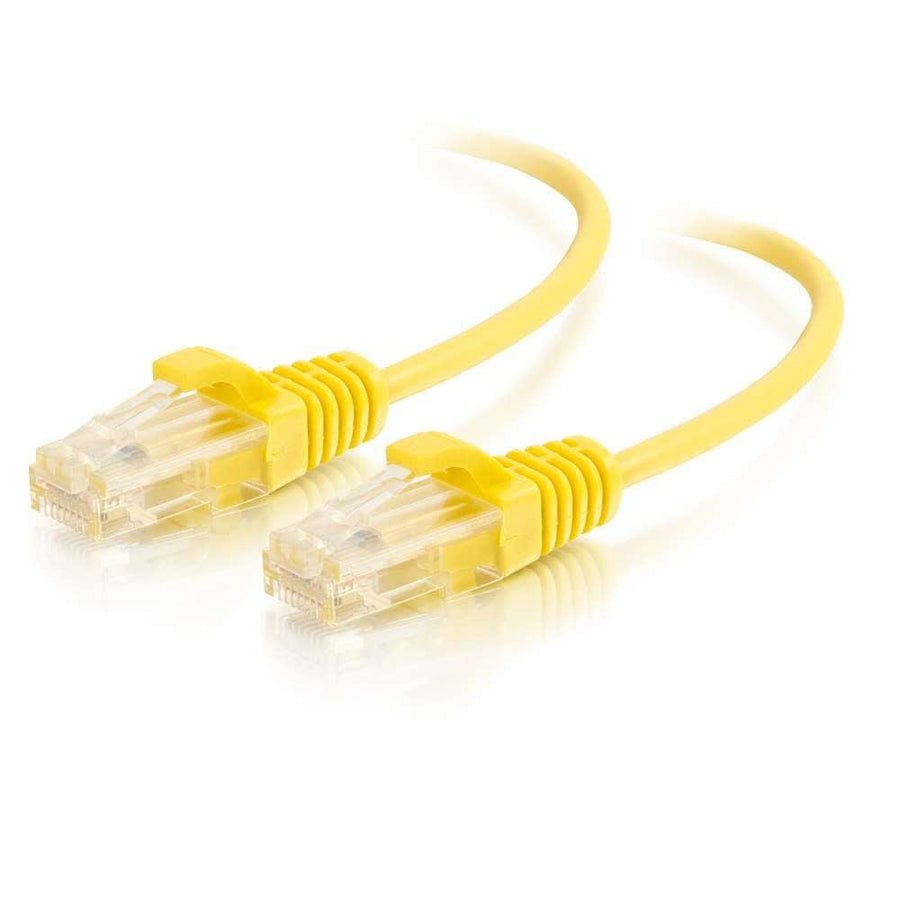

15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Yellow
15ft Cat6 Slim UTP patch cable with 28 AWG conductors for high-density airflow and small bend radius applications
The C2G02245 is a 15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable in yellow, specifically engineered for high-density datacenter environments. Utilizing 28 AWG stranded copper conductors, this cable offers a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile reduces the overall cable surface area, which facilitates improved airflow within crowded racks. The reduced diameter also enables a much tighter bend radius of 0.6 in (15.2 mm), making it easier to route through tight cable management panels. This cable is designed for high-bandwidth applications including voice, data, and video distribution. It features a molded, snagless PVC boot to provide extra strain relief and prevent snags during installation. For POE/POE+ applications, installers should limit cable bundles to 40 units to manage the heat dissipation associated with these reduced diameter conductors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022459 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will this C2G02245 cable work in high-density server racks?
Yes, the 28 AWG slim design is optimized for high-density environments by increasing airflow and allowing for a 0.6 in (15.2 mm) bend radius.
Can I use this slim Cat6 cable for PoE applications?
Yes, but for POE/POE+ applications, it is recommended to limit cable bundles to 40 cables to ensure proper heat dissipation.
What is the maximum channel length for this Cat6 slim patch cable?
For a 96-meter channel, use up to 6 meters of slim patch cables. For a 93-meter channel, you can use up to 10 meters of slim patch cables.
What tools are required to install the C2G02245?
This is a factory-terminated patch cable with RJ-45 male connectors, so no specialized installation tools are required for connectivity.
What is the difference between this and standard Cat6 cables?
This slim version uses 28 AWG conductors to achieve a 36% smaller diameter than standard Cat6, allowing for higher density and better airflow.
