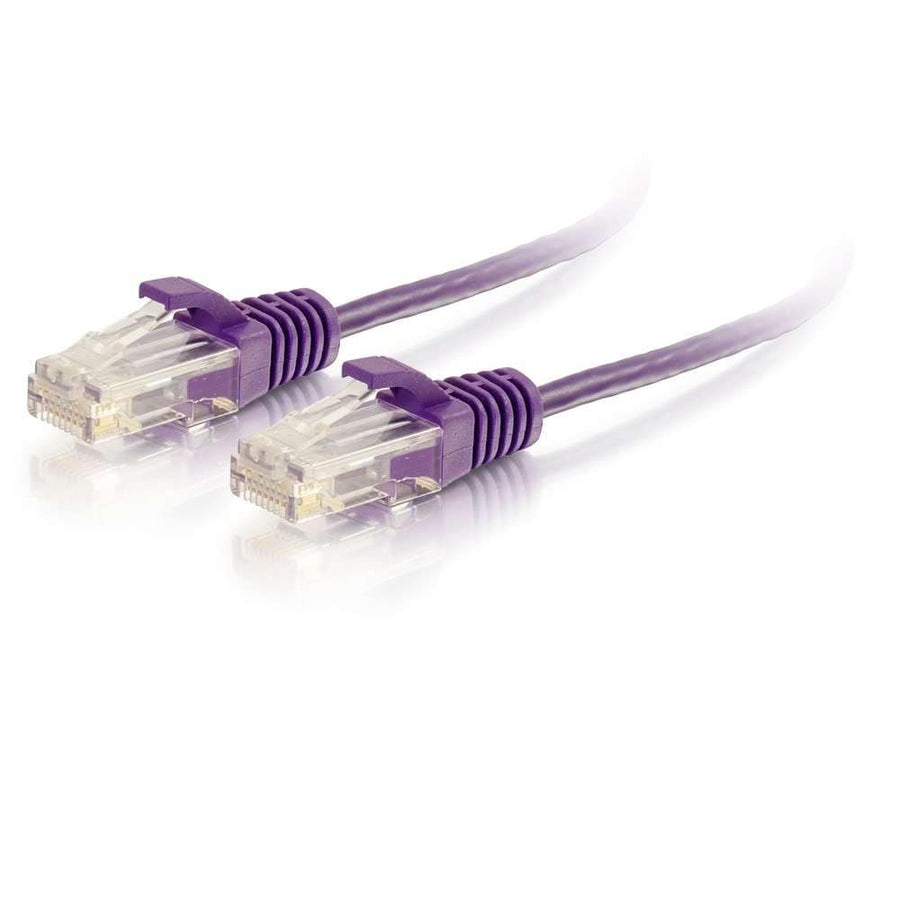

15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Purple
15ft purple Cat6 slim patch cable with 28 AWG conductors and a 0.6 inch (15.2 mm) bend radius
The C2G02230 is a 15ft (4.57m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in purple. Designed specifically for high-density datacenter applications, this cable utilizes 28 AWG stranded copper conductors to achieve a 36% reduction in diameter compared to standard Cat6 patch cables. This slim 0.15 in (3.8 mm) diameter minimizes the cable surface area, which facilitates improved airflow within crowded enclosures. The reduced size and 0.6 in (15.2 mm) bend radius allow for easier routing through dense cable management panels. This TIA/EIA-568-C.2 compliant cable supports 10 GBPS data transfer rates and is intended for bandwidth-intensive voice, data, or video distribution applications. Each connector features an RJ-45 male interface with 50 µ in gold plating and a PVC snagless boot to provide strain relief and prevent snags during installation. For POE/POE+ applications, it is recommended to limit cable bundles to 40 units to manage heat dissipation caused by the reduced conductor diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022305 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
What is the maximum channel length for this Cat6 slim cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables with 90 meters of horizontal cable. For a 93 Meter Channel, you can use up to 10 meters of slim patch cables with 83 meters of horizontal cable.
Is this cable suitable for POE or POE+ applications?
Yes, but for POE/POE+ applications, it is recommended to limit cable bundles to 40 cables to ensure proper heat dissipation of the 28 AWG conductors.
Will this cable fit in high-density patch panels?
Yes. The 0.15 in (3.8 mm) diameter and 0.6 in (15.2 mm) bend radius are designed to allow for easier routing through cable management panels and high-density datacenter environments.
What standards does this patch cable comply with?
This Cat6 cable is compliant with the ANSI/TIA-568-C.2 standard and meets TIA/EIA-568-C.2 specifications.
What documents are available for technical submittals?
You can refer to the Cat6 Slim Expansion Test Data PDF for detailed performance and expansion testing information.
