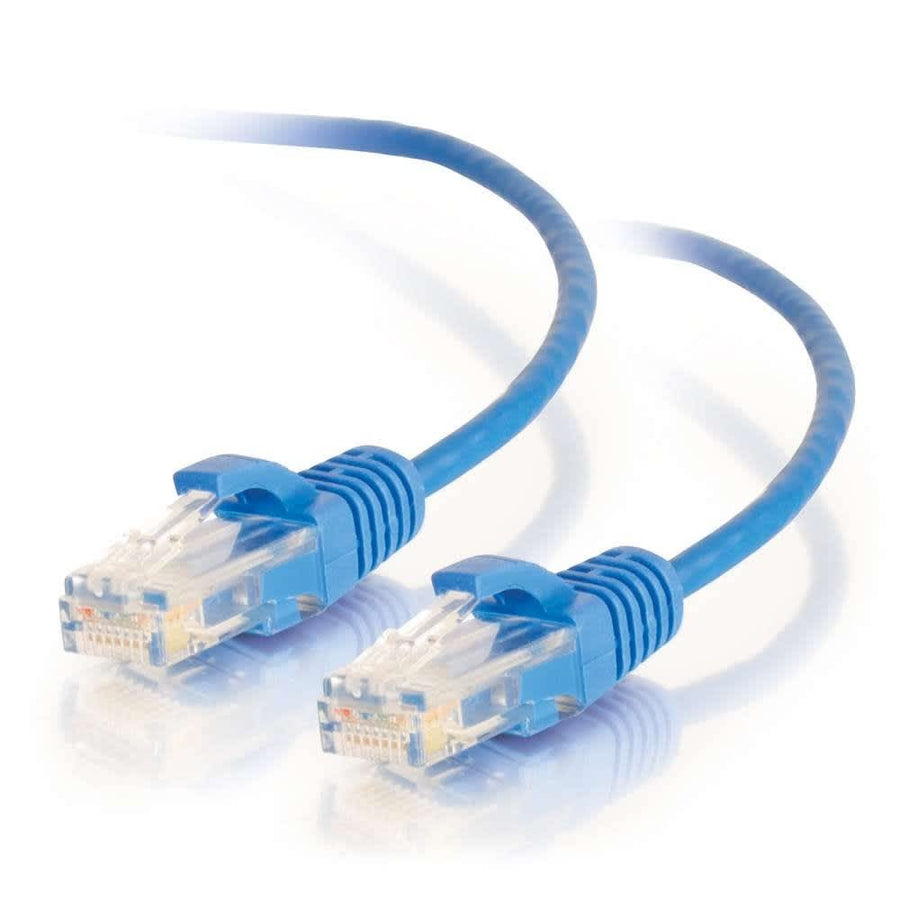

15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
15ft Cat6 Slim UTP patch cable, 28 AWG stranded copper, Blue finish, optimized for high-density airflow
The C2G02215 is a 15 ft (4.6 m) Cat6 Slim Snagless Unshielded (UTP) Network Patch Cable in Blue. Designed specifically for high-density datacenter applications, this cable utilizes 28 AWG conductors to achieve a 36% reduction in diameter compared to standard Cat6 patch cables. This slim 0.15 in (3.8 mm) diameter reduces the cable surface area, which facilitates improved airflow within crowded network racks and enclosures. The reduced size also enables a much tighter bend radius of just 0.6 in (15.2 mm), making it easier to route through dense cable management panels. This cable supports data transfer rates up to 10 Gbps and operates at a bandwidth of 500 MHz. It features stranded copper conductors with 50 µ in gold plating on the RJ-45 male connectors. For installations requiring color-coding, this SKU is available in various colors within the same series. Note that for PoE/PoE+ applications, bundle sizes are limited to 40 cables to manage heat dissipation due to the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022152 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will this C2G02215 cable work for PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit bundle sizes to 40 cables to manage heat dissipation caused by the 28 AWG reduced diameter.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables. For a 93 Meter Channel, you can use up to 10 meters.
Does this cable require special mounting hardware to use with patch panels?
This cable is compatible with several accessories including the CG37199 Cat6 QuickConnect RJ45 Keystone Insert and the CG37094 Two Port Keystone Single Gang Wall Plate.
What is the maximum data speed and bandwidth for the C2G02215?
This Cat6 cable supports a data transfer rate of 10 Gbps and has a bandwidth of 500 MHz.
How does the bend radius of this slim cable compare to standard cables?
The C2G02215 features a 0.6 in (15.2 mm) bend radius, which is significantly smaller than standard Cat6 cables, allowing for easier routing in high-density environments.
