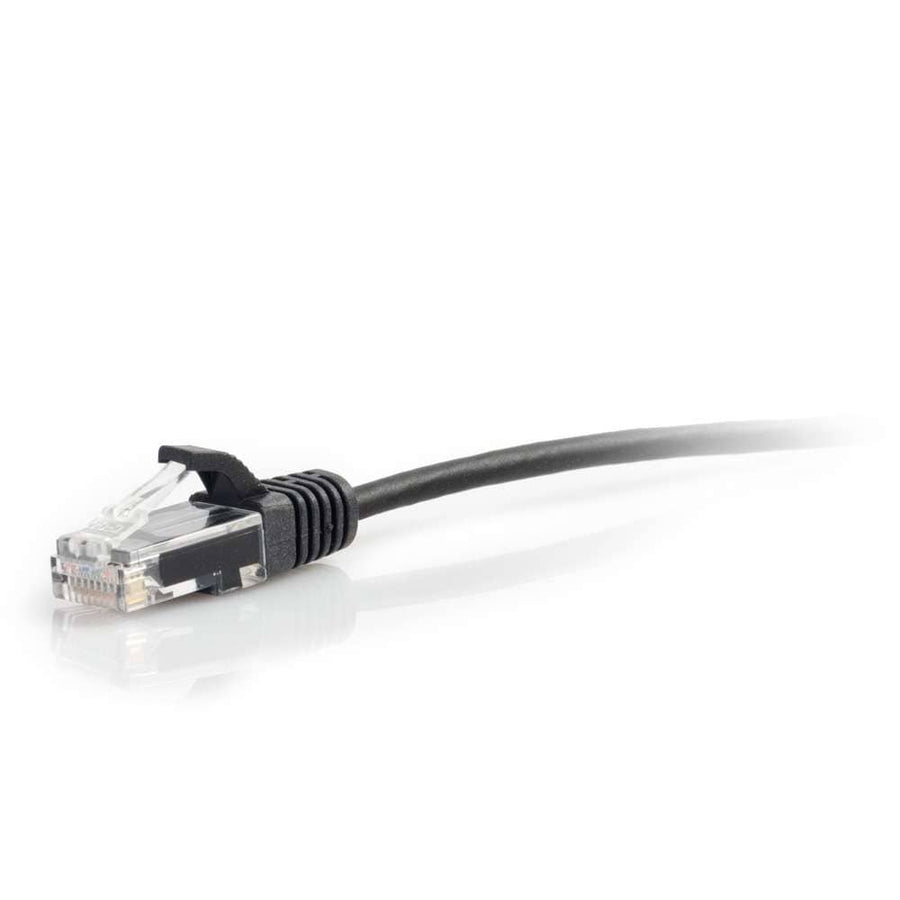

15ft (4.57m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Black
15ft Cat6 Slim Snagless UTP patch cable, 28 AWG conductors for high-density airflow and reduced bend radius
The C2G02209 is a 15ft (4.6 m) Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable designed for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slimmer 0.15 in (3.8 mm) profile reduces the cable surface area, facilitating improved airflow within crowded racks and enclosures. The smaller diameter also enables a significantly tighter bend radius of 0.6 in (15.2 mm), allowing for easier routing through high-density cable management panels. This cable is engineered for fast Ethernet networks requiring bandwidth-intensive voice, data, or video distribution, supporting data transfer rates of 10 GBPS and a 500 mHz bandwidth. Each connector features 50 µ in gold plating on the RJ-45 Male ends and is protected by a PVC snagless boot to provide strain relief and prevent accidental disconnection during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 15 ft (4.6 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022091 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will this C2G02209 cable work for PoE/PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 cables due to the heat dissipation characteristics of these reduced diameter cables.
What is the maximum channel length when using this slim Cat6 cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim patch cables. For a 93 Meter Channel, you can use up to 10 meters.
What other equipment is compatible with this patch cable?
This cable is compatible with various components such as the CG37199 QuickConnect Keystone Insert, CG37094 Wall Plates, and the CG37199 Patch Panel.
What are the installation requirements for this cable?
The cable is a T568B wiring scheme UTP cable. It is designed for standard non-rated applications with a 0.6 in (15.2 mm) minimum bend radius.
Is the C2G02209 suitable for high-bandwidth data applications?
Yes, it supports 10 GBPS data transfer rates and is suitable for bandwidth-intensive voice, data, or video distribution applications.
