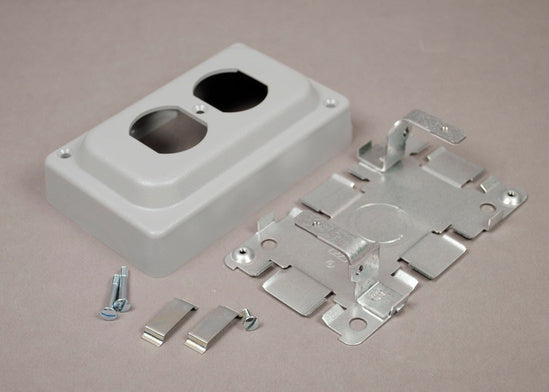

1546B Overfloor Raceway Duplex Receptacle Box
Overfloor duplex receptacle box for 1500 and 2600 Series raceways, featuring 1/2" and 3/4" KOs
The Wiremold 1546B is an overfloor receptacle box designed to accommodate commercially available 15A or 20A duplex receptacles. This steel unit features a base with 1/2" and 3/4" concentric trade size KOs for flexible conduit entry. The included nonmetallic cover includes 1500 and 2600 Series Raceway twistouts on all four sides for versatile cable management. Installation is simplified with two 1500WC Wire Clips provided for securing the unit. This gray receptacle box is built to meet RoHS material restrictions and is UL listed. For projects requiring compliance with Canadian Safety Standards, use the C1546B variant instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 8" x 7.75" x 5.75" (203.2 x 196.9 x 146.1 mm) |
| Canadian Certified | No |
| Receptacle Type | Duplex |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Gray |
Resources
Questions about this part
What receptacle type does the 1546B support?
The 1546B accommodates standard 15A or 20A duplex receptacles.
Will this work with 1500 or 2600 Series raceways?
Yes, the nonmetallic cover features twistouts specifically for both 1500 and 2600 Series Raceway systems on all four sides.
What conduit sizes can be used with this box?
The base is equipped with 1/2" and 3/4" concentric trade size KOs for conduit connections.
Is the 1546B certified for use in Canada?
This specific SKU is not listed as Canadian Certified; for Canadian Safety Standards compliance, you must order the C1546B variant.
