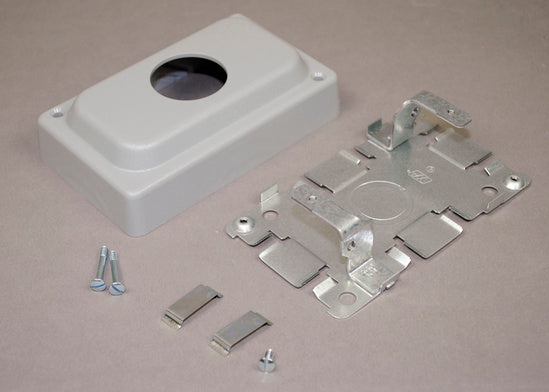

1546A Overfloor Raceway Single Receptacle Box
Single receptacle overfloor box for 1500 and 2600 Series Raceways, TAA compliant in a gray finish
The Wiremold 1546A is a single receptacle box designed for use within the 1500/2600 Series Overfloor Raceway system. This steel box is engineered to accommodate commercially available straight blade or locking single receptacles that have face diameters between 1.38-1.40'' (35-36mm). To facilitate installation into existing conduits or floor entries, the base features 1/2'' and 3/4'' trade size concentric knockouts. The included nonmetallic cover is versatile, featuring 1500 and 2600 Series Raceway twistouts on all four sides to allow for flexible cabling entry and exit. This TAA compliant component is finished in gray and meets RoHS material restrictions. When installing in a Canadian environment, note that this specific model is the US version; for Canadian certification, the C1546A variant should be utilized.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Canadian Certified | No |
| Receptacle Type | Single |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Gray |
Resources
Questions about this part
What type of receptacles fit in the 1546A?
This box accommodates single straight blade or locking receptacles with face diameters of 1.38-1.40'' (35-36mm).
Will this work with my 1500 or 2600 Series Raceway?
Yes, the nonmetallic cover includes twistouts for both 1500 and 2600 Series Raceway on all four sides.
What size conduits can I connect to the base?
The base is equipped with 1/2'' and 3/4'' trade size concentric KOs for easy integration.
Is the 1546A TAA compliant?
Yes, this part is TAA compliant and meets RoHS material restrictions.
Is this the correct part for a Canadian installation?
For projects requiring Canadian certification, you should order the C1546A version instead of this SKU.
