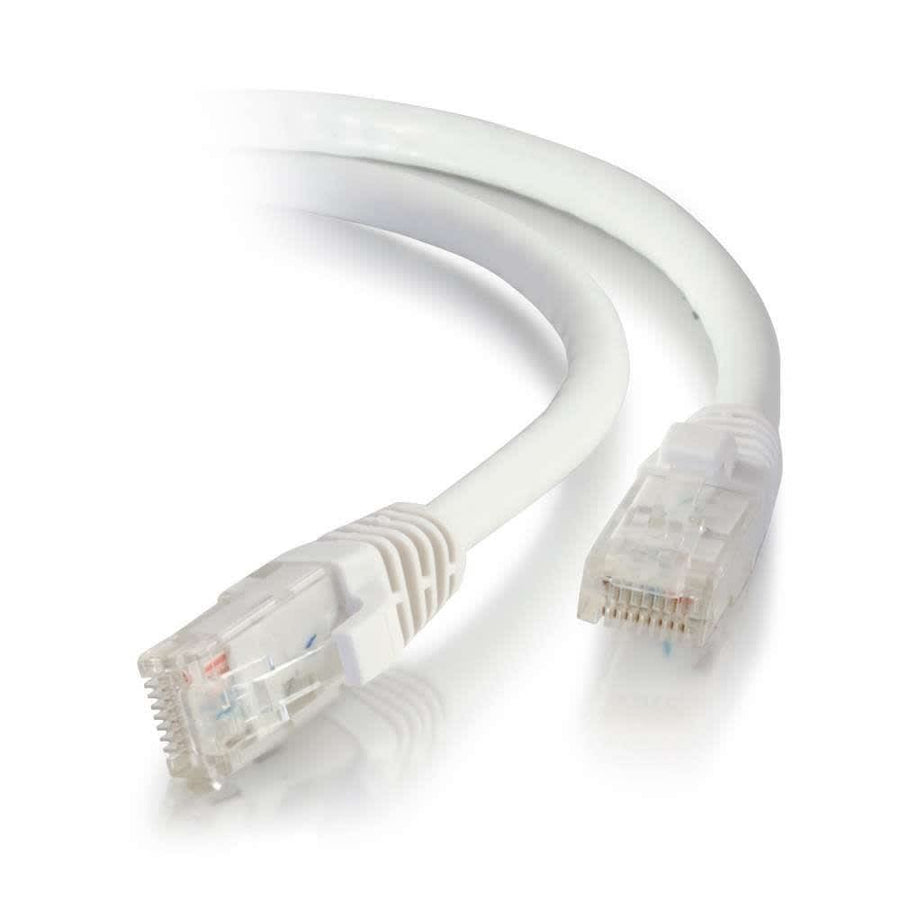

150ft Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - White
150ft Cat5e snagless unshielded UTP Ethernet patch cable, white, with stranded copper conductors
The CG19352 is a 150 ft (45.7 m) Cat5e snagless unshielded UTP Ethernet network patch cable designed for high-speed data, voice, and video distribution. This white cable features stranded copper conductors and is built to meet all Cat5e TIA/EIA standards, which helps to drastically reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain twist-spacing through the entire line up to the termination point, a construction method that minimizes Near-End Crosstalk (NEXT) levels. The cable features a 0.21 in (5.3 mm) diameter and utilizes a PVC jacket and hood material. For ease of installation, the molded snagless boots protect the RJ-45 clips from damage during plugging and unplugging while providing added strain relief. This T568B wiring scheme cable is rated for 350 mHz bandwidth and supports electrical specifications including a minimum insulation resistance of 100 Ohm/km and a maximum conductor DC resistance of 89 Ohm/km.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 326 lbs (147.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120193524 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the length and wiring of the C2G CG19352?
The CG19352 is a 150 ft (45.7 m) cable utilizing the T568B wiring scheme.
Will the snagless boots protect my cables during installation?
Yes, the molded snagless design protects the RJ-45 clips and provides extra strain relief when plugging and unplugging.
Is the C2G CG19352 suitable for high-bandwidth video distribution?
Yes, this Cat5e cable is designed for bandwidth-intensive applications including video, voice, and data distribution.
What are the technical electrical specifications for this cable?
This cable has a maximum conductor DC resistance of 89 Ohm/km and a minimum insulation resistance of 100 Ohm/km.
Does this cable come with a warranty?
Yes, this C2G patch cable is covered by a lifetime warranty.
