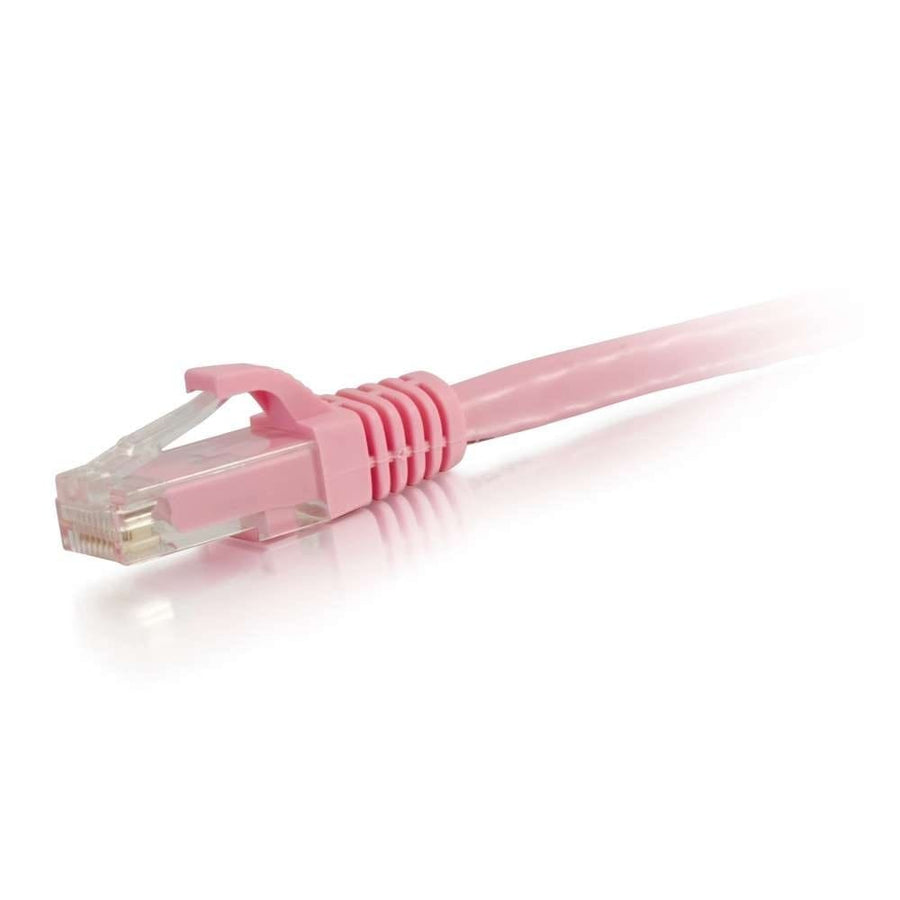

150ft (45.7m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
150ft Pink Cat6 UTP patch cable with snagless boots for high-bandwidth voice, data, or video distribution
The C2G CG04063 is a 150ft (45.7 m) Pink Cat6 Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth applications including voice, data, and video distribution. This cable is constructed with high-quality stranded copper conductors and 24 AWG wire gauge to minimize Near-End Crosstalk (NEXT) levels. It is engineered to meet all Cat6 TIA/EIA standards, which helps to significantly reduce both impedance and structural return loss (SRL). To maintain signal integrity, each individual pair is bonded together to preserve the necessary twist-spacing from the source to the termination point. This specific SKU features a pink PVC jacket and snagless boots, which provide additional strain relief and protect the RJ-45 clips from damage during frequent plugging and unplugging in high-density environments. It utilizes a T568B wiring scheme and is rated for standard, non-rated installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 4.08 lbs (1.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040637 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G CG04063 suitable for high-bandwidth video distribution?
Yes, this Cat6 cable is designed for bandwidth-intensive applications including data, voice, and video distribution.
What is the difference between the snagless boot and a standard connector?
The snagless design on this CG04063 cable protects the RJ-45 clips from being snapped off during installation and provides extra strain relief.
Does this cable use solid or stranded copper conductors?
The CG04063 uses stranded copper conductors, which are typically preferred for patch cables requiring flexibility.
Can I use this cable in a shielded environment?
No, this is an Unshielded Twisted Pair (UTP) cable and is not intended for shielded applications.
What is the wiring standard for this patch cable?
This 150ft Cat6 cable follows the T568B wiring scheme.
