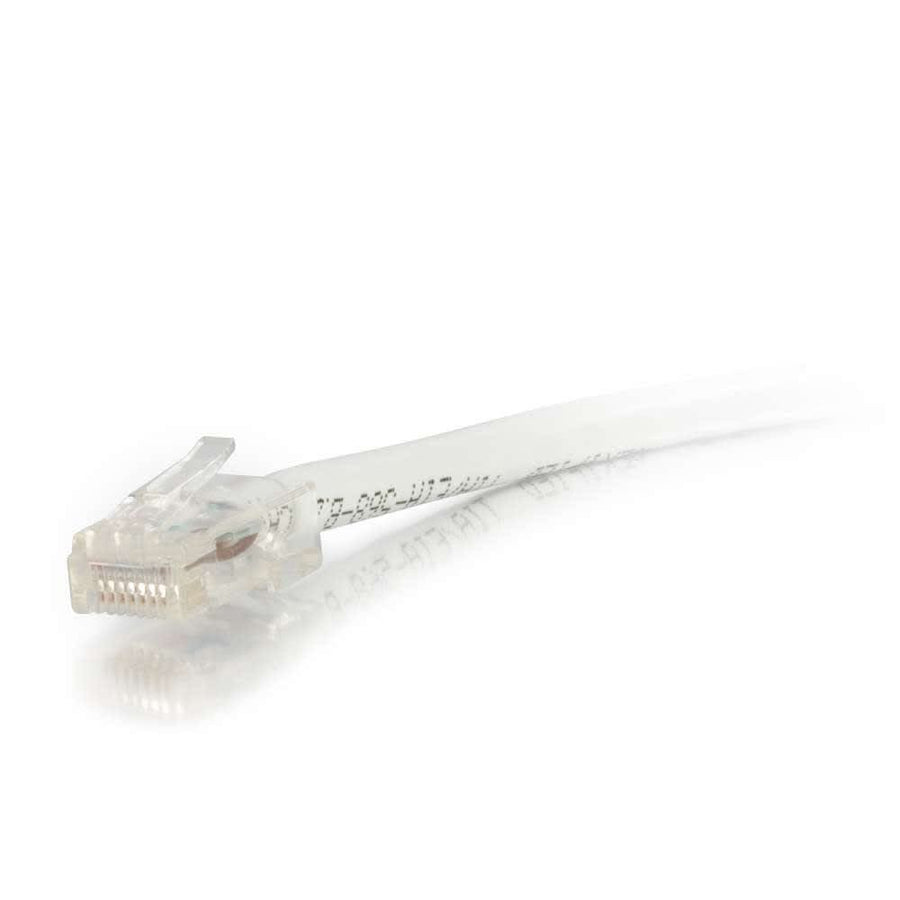

150ft (45.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - White
150ft Cat6 UTP patch cable in white with non-booted RJ-45 connectors and T568B wiring scheme
The C2G CG04252 is a 150ft (45.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth environments. This cable is engineered for fast Ethernet and Gigabit computer networks that require reliable distribution of voice, data, or video signals. It meets all Cat6 TIA/EIA standards, working to drastically reduce both impedance and structural return loss (SRL). The construction utilizes high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire 150ft length right up to the termination point. This white patch cable features a PVC jacket and is rated for temperatures up to 75°C. The cable utilizes a T568B wiring scheme with RJ-45 male connectors on both ends, providing a reliable link for bandwidth-intensive network applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 4.08 lbs (1.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042525 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will this Cat6 cable work for Gigabit Ethernet networks?
Yes, the CG04252 is designed for Gigabit networks and meets all Cat6 TIA/EIA standards for high-bandwidth data, voice, and video applications.
What is the wiring scheme for the CG04252 patch cable?
This cable is terminated with a T568B wiring scheme and uses non-booted RJ-45 male connectors on both ends.
Is the CG04252 suitable for high-density environments?
Yes, the stranded copper design is engineered to minimize Near-End Crosstalk (NEXT) and maintain twist-spacing to reduce impedance and structural return loss.
What is the maximum operating temperature for this cable?
The CG04252 features a PVC jacket with a temperature rating of up to 75°C.
Are there other color or length options for this series?
Yes, this cable is part of a larger series that offers different color options and various lengths ranging from 0.5 ft to 150 ft.
