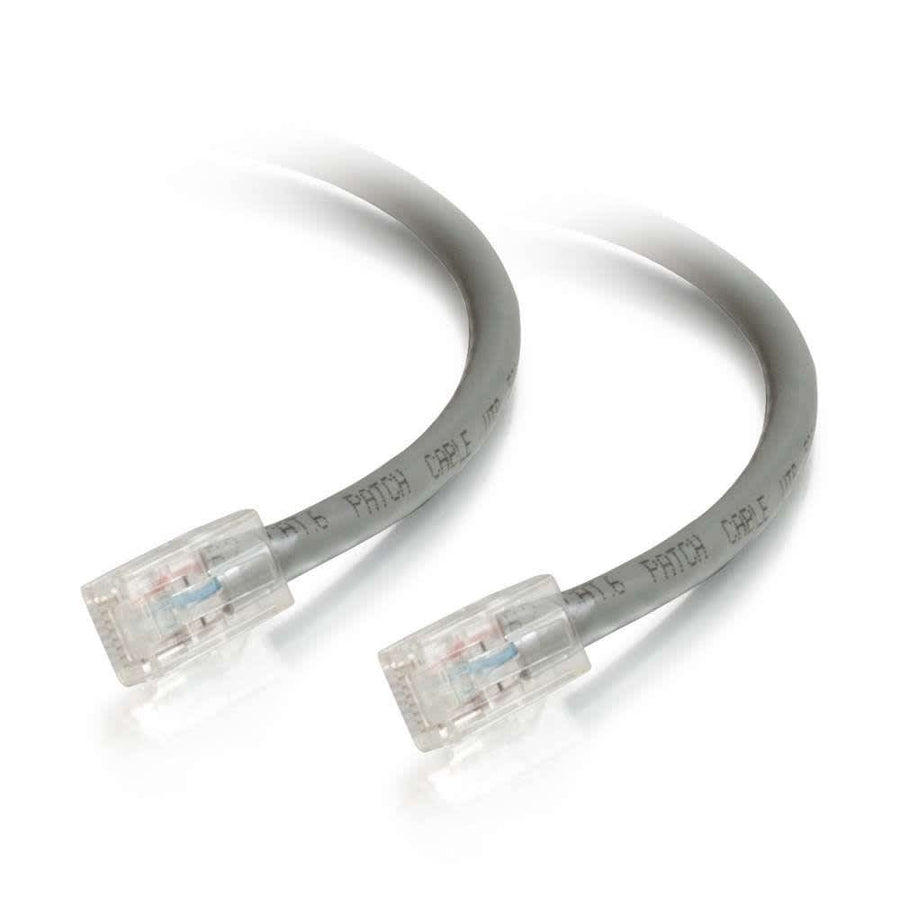

150ft (45.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
150ft Gray Cat6 UTP patch cable with stranded copper conductors and T568B wiring for high-bandwidth networking
The C2G CG04084 is a 150ft (45.7 m) Category 6 patch cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This unshielded UTP cable utilizes stranded copper conductors and a PVC jacket to support high-speed networking requirements. Each pair is bonded together to maintain twist-spacing through the termination point, which helps minimize Near-End Crosstalk (NEXT) levels and reduces structural return loss (SRL) and impedance. This cable features an RJ-45 male to RJ-45 male connector configuration with a non-booted design. It follows the T568B wiring scheme and is rated for temperatures up to 75°C. This 0.24 in (6 mm) diameter cable is an ideal solution for large-scale installations where color-coding is required for organized network management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.94 lbs (1.8 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040842 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring standard for the C2G CG04084?
This patch cable uses the T568B wiring scheme for all connections.
Is this cable suitable for high-bandwidth video applications?
Yes, this Cat6 cable is designed for bandwidth-intensive voice, data, or video distribution in Gigabit networks.
What are the technical electrical specifications for this cable?
The cable features a 9.38#/100m maximum conductor DC resistance, 100# impedance, and a maximum propagation delay of 545ns/100m.
What is the maximum operating temperature for the C2G CG04084?
The cable is rated for operation in temperatures up to 75°C.
What is the difference between this and the booted versions?
This SKU is a non-booted version, which provides a more compact connector profile compared to booted series variants.
