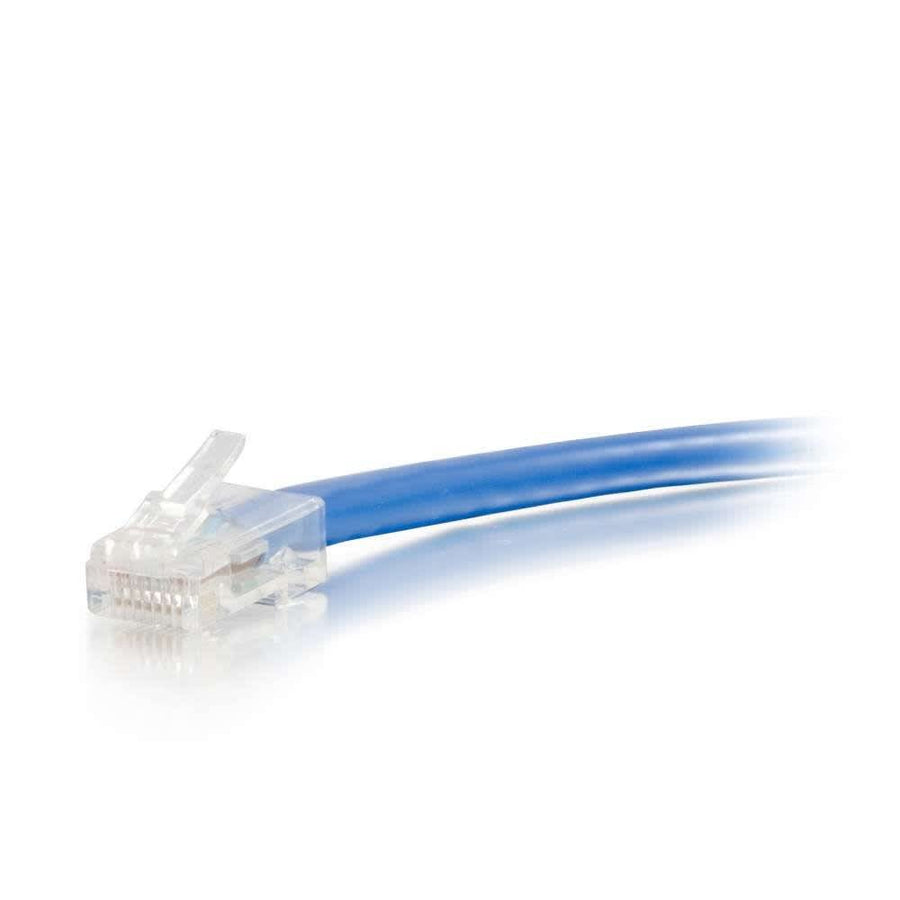

150ft (45.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Blue
150ft Cat6 UTP Ethernet patch cable in blue, featuring 24 AWG stranded copper conductors and T568B wiring.
The C2G CG04105 is a 150ft (45.7m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for high-bandwidth voice, data, or video distribution. This blue cable is engineered to meet all Cat6 TIA/EIA standards, significantly reducing impedance and structural return loss (SRL). Each individual pair is bonded together to maintain consistent twist-spacing through to the termination point, which helps minimize Near-End Crosstalk (NEXT) levels. This construction utilizes high-quality 24 AWG stranded copper conductors to ensure reliable performance in fast Ethernet and Gigabit computer networks. The cable features a PVC jacket with a 0.24 in (6 mm) diameter and is terminated with two RJ-45 Male connectors using a T568B wiring scheme. This non-booted patch cable is rated for temperatures up to 75°C and is compliant with RoHS, REACH, and CE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 3.71 lbs (1.7 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041054 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will this Cat6 cable support Gigabit speeds?
Yes, the C2G CG04105 is designed for high-bandwidth applications, including Gigabit computer networks, and meets all Cat6 TIA/EIA standards.
What is the wiring configuration for the CG04105?
This patch cable uses the T568B wiring scheme on both ends and features RJ-45 Male connectors.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable, which uses bonded pair twist-spacing to reduce crosstalk without the need for external shielding.
What is the maximum operating temperature for this cable?
The jacket material is rated for temperatures up to 75°C.
What is the difference between this and other C2G patch cables?
This SKU is a 150ft blue variant from the Cat6 Non-Booted series; other options in this series vary by length and color.
