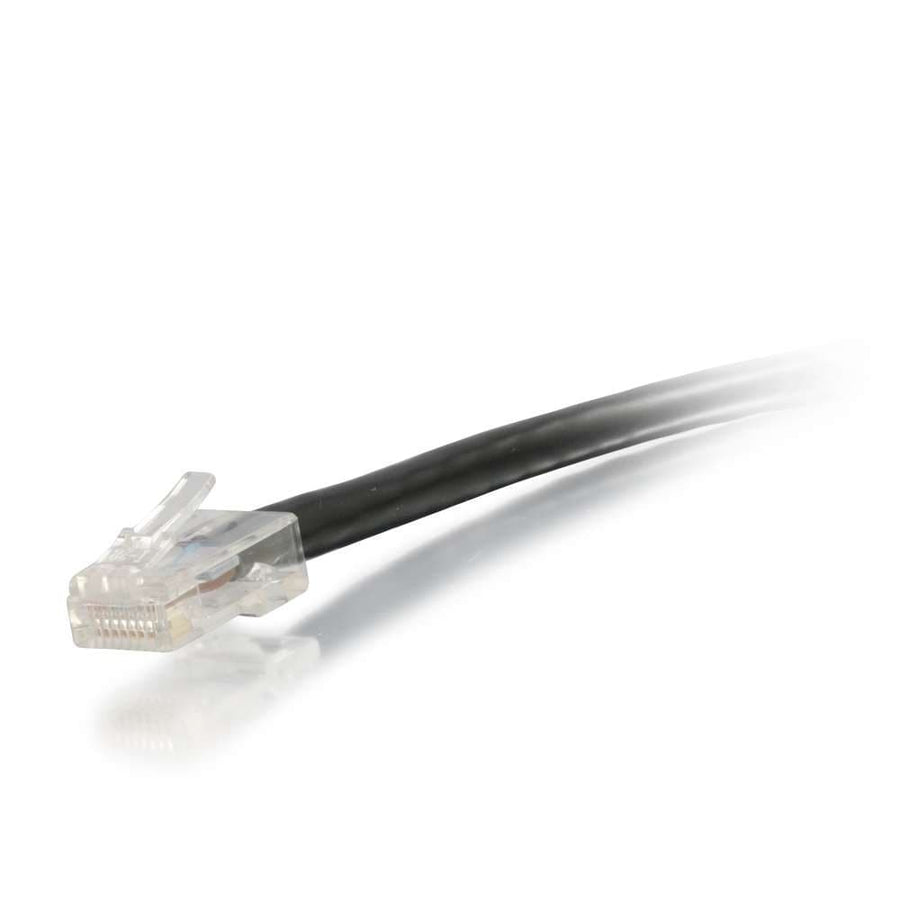

150ft (45.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Black
150ft Cat6 UTP patch cable, black PVC jacket, T568B wiring, 24 AWG stranded copper conductors
The C2G CG04126 is a 150 ft (45.7 m) Cat6 Unshielded UTP Ethernet patch cable designed for high-bandwidth applications involving voice, data, or video distribution. This cable uses 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain precise twist-spacing throughout the entire 45.7 m length, which helps reduce impedance and structural return loss (SRL). Built with a black PVC jacket and a 0.24 in (6 mm) diameter, this non-booted cable is organized using the T568B wiring scheme. It is rated for temperatures up to 75°C and is suitable for Gigabit computer networks that require consistent performance. This product is TAA non-compliant but meets all Cat6 TIA/EIA standards for high-speed networking environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 150 ft (45.7 m) |
| Shield Type | UTP |
| Shipping Weight | 4.08 lbs (1.9 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041269 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Is the C2G CG04126 TAA compliant?
No, this specific SKU is not TAA compliant, though it meets all Cat6 TIA/EIA standards.
What is the maximum temperature rating for this cable?
This Cat6 patch cable has a temperature rating of 75°C.
What type of wiring scheme does the CG04126 use?
This cable uses the T568B wiring scheme for its RJ-45 male terminations.
What is the construction of the conductors in this cable?
The cable features 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT).
What is the diameter of the cable jacket?
The cable has a diameter of 0.24 in (6 mm) and features a black PVC jacket.
