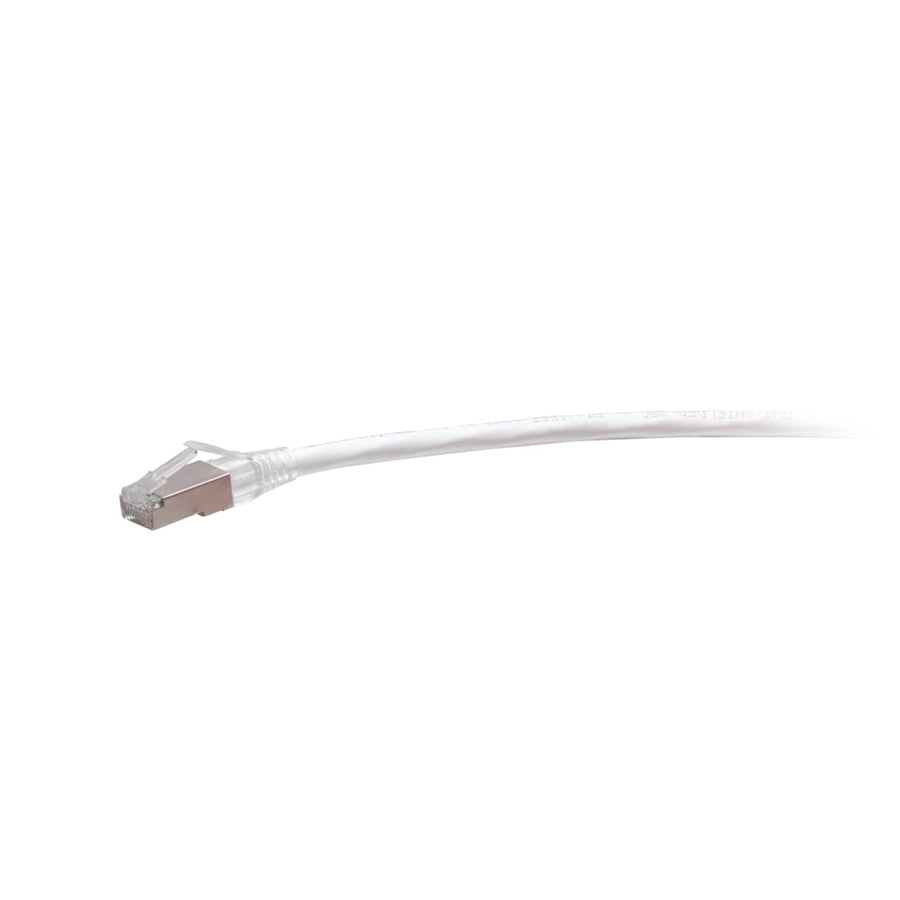

14ft (4.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
14ft TAA-compliant Cat6a shielded snagless patch cable, white, designed for 10GBase-T high-speed networking
The C2G43971 is a 14ft (4.3m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable designed to support high-bandwidth 10GBase-T applications. This white patch cable is manufactured with high-quality, made-in-the-USA copper cabling and features an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. It is ideal for connecting 10 Gigabit Ethernet equipment, including network adapters, switches, routers, hubs, and patch panels. The cable uses stranded copper conductors and features 50-micron gold-plated contacts to maintain signal integrity. For ease of installation and protection against high insertion cycles, the snagless RJ45 connectors prevent the clips from snapping off. This CMR rated, riser-rated cable is constructed with a PVC jacket and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is specifically approved for use in United States government projects and facilities due to its TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439714 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43971 TAA compliant?
Yes, this is a TAA-compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to handle 10GBase-T applications, supporting high-speed 10 Gigabit Ethernet networking.
Does this cable provide shielding against interference?
Yes, the C2G43971 uses Shielded STP construction with aluminum foil to protect against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk.
What type of connector is used on this patch cable?
The cable features snagless RJ45 male to RJ45 male connectors with 50-micron gold-plated contacts to improve signal integrity.
Can I use this for vertical riser installations?
Yes, this cable features a CMR rated, riser-rated PVC jacket suitable for these applications.
