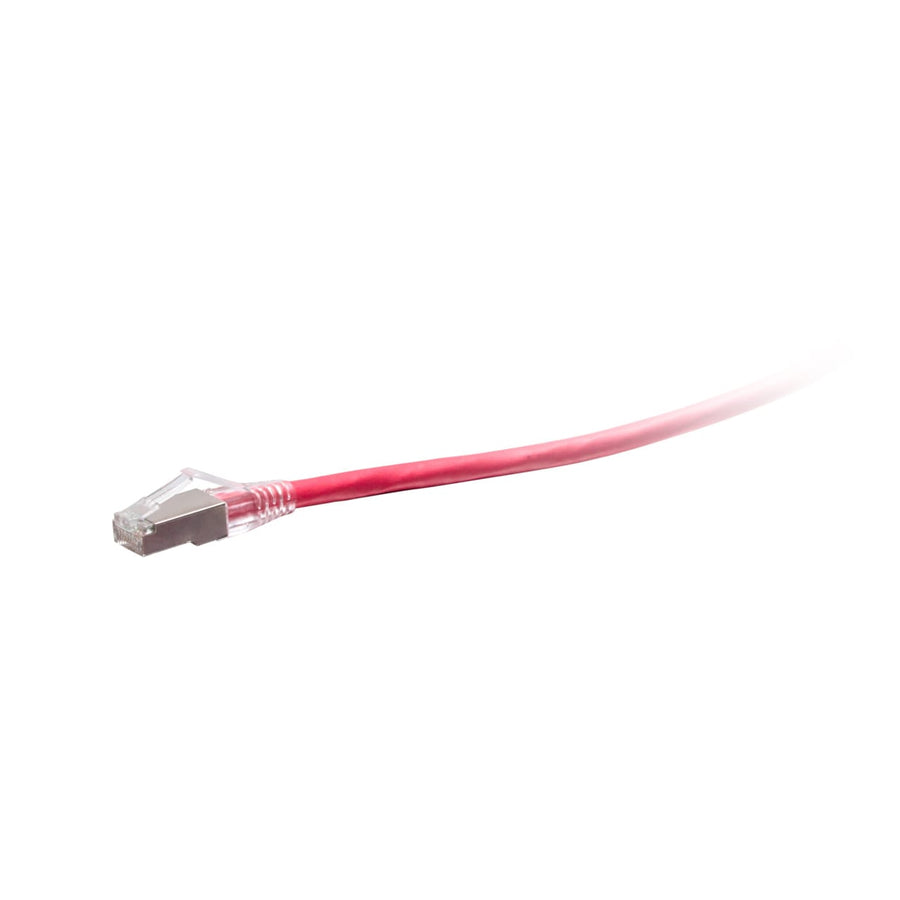

14ft (4.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
Red 14ft (4.3m) Cat6a STP snagless shielded network cable, TAA-compliant and CMR rated
The C2G43887 is a 14 ft (4.3 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in red. Engineered for high-speed 10GBASE-T environments, this passive cable is designed to protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It features a shielded STP construction with an aluminum foil shield and stranded copper conductors to manage bandwidth-intensive applications by reducing impedance and structural return loss (SRL). Each end is terminated with a 50-micron gold-plated RJ-45 male connector, protected by a snagless design to prevent clip breakage during high insertion cycles. This CMR rated, riser-application cable is built with a PVC jacket and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Because it is TAA-compliant, this cable is approved for use in United States government projects and facilities. It operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438878 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43887 TAA compliant for government contracts?
Yes, this C2G43887 cable is TAA-compliant and approved for use in United States government projects and facilities.
Will this Cat6a cable support 10Gbps speeds?
Yes, this snagless shielded Cat6a cable is designed for 10GBASE-T ports and equipment, including network adapters, switches, and routers.
What is the maximum operating temperature for this red cable?
This cable is rated to operate in temperatures ranging from -4°F (-20°C) up to 167°F (75°C).
What type of shielding does this C2G43887 cable use?
The cable uses Shielded STP (Shielded Twisted Pair) construction with an aluminum foil shield to counter interference and alien crosstalk.
What installation tools are needed for this cable?
As a pre-terminated patch cable with RJ-45 male connectors, no special installation tools are required for use; however, the snagless design protects the clips from damage during handling.
