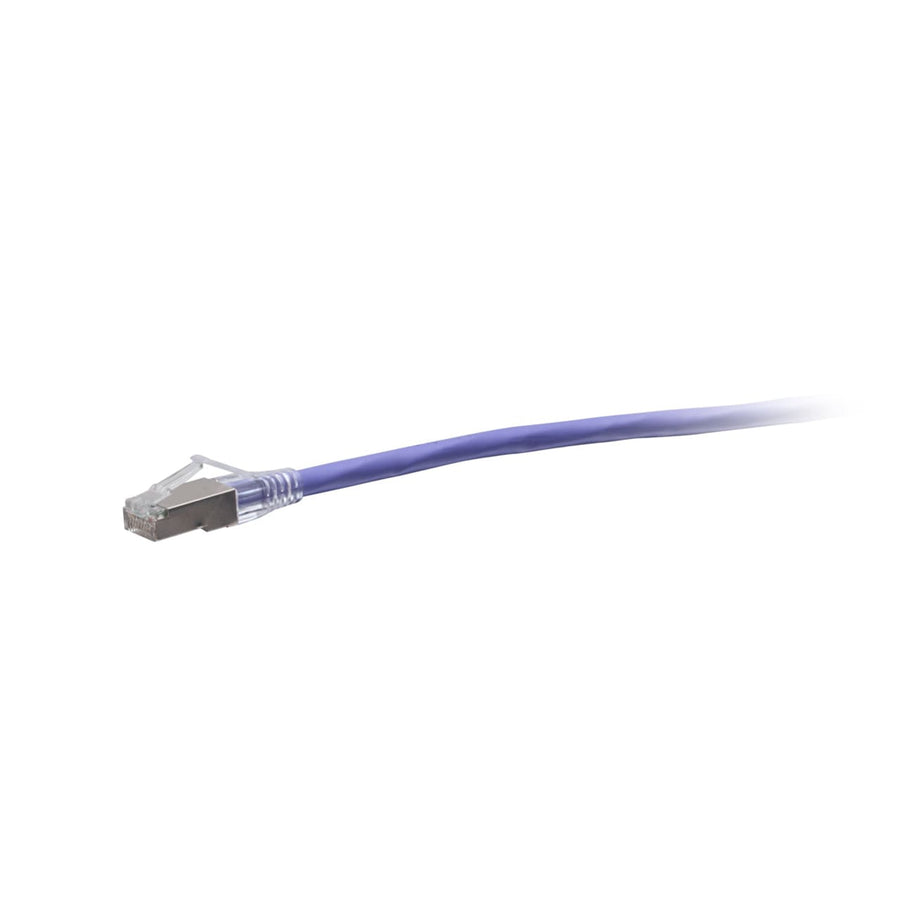

14ft (4.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
14ft TAA-Compliant Cat6a shielded STP patch cable, snagless design, purple jacket for color-coded installations
The C2G43950 is a 14 ft (4.3 m) TAA-Compliant F-Series Cat6a snagless shielded (STP) network cable in purple. This passive patch cable is constructed with high-quality, made in the USA stranded copper cabling and an aluminum foil shield to protect high-speed 10 Gigabit Ethernet connections from EMI, RFI, and alien crosstalk. Designed for 10GBase-T ports, this cable is suitable for use with network adapters, switches, routers, hubs, and patch panels to support bandwidth-intensive applications. The snagless RJ45 connector design protects the clips from snapping off, making it a reliable choice for environments with high insertion cycles. Each cable features 50-micron gold-plated contacts to ensure signal integrity and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This CMR rated, riser-rated cable has a 0.24 in (6 mm) diameter and is rated for operating temperatures between -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439509 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43950 TAA compliant for government contracts?
Yes, this is a TAA-Compliant F-Series cable, making it approved for use in United States government projects and facilities.
What is the maximum speed and throughput for this Cat6a cable?
This Cat6a cable is designed to support 10GBase-T (10 Gigabit Ethernet) and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Will this cable work in a high-traffic environment with frequent re-patching?
Yes, the snagless RJ45 design is specifically engineered to protect the connector clips from being snapped off during high insertion cycles.
What is the difference between this STP cable and a standard UTP cable?
This SKU uses Shielded STP construction with aluminum foil to protect the signal from EMI, RFI, and alien crosstalk, whereas unshielded twisted pair (UTP) lacks this layer.
What is the temperature rating for this purple network cable?
This cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
