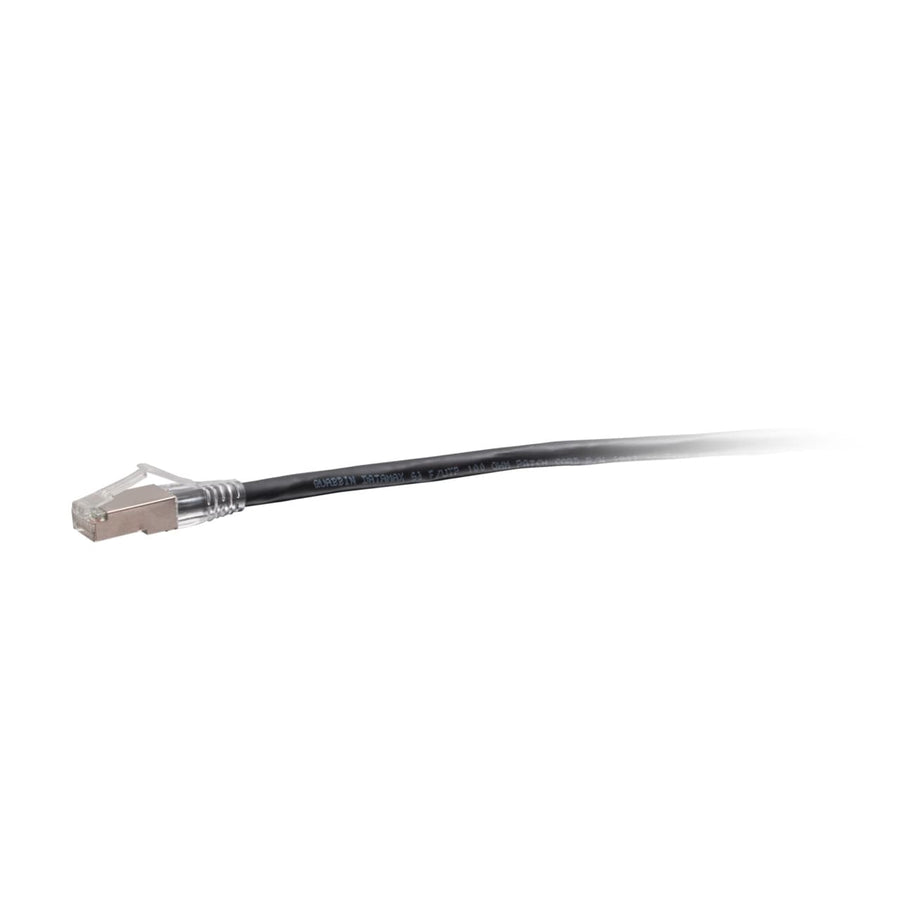

14ft (4.3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
14ft TAA-Compliant Cat6a shielded STP patch cable, snagless RJ45 connectors, black, 10GBase-T compatible
The C2G43845 is a 14 ft (4.3 m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable designed for high-bandwidth environments. This passive cable is built to meet the strict TAA compliance requirements necessary for United States government projects and specialized facilities. Each cable features stranded copper conductors with 50-micron gold-plated contacts to ensure signal integrity during high-speed data transfers. The shielded STP construction uses an aluminum foil shield to mitigate electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk, making it suitable for 10GBase-T ports on switches, routers, hubs, and network adapters. For installation in vertical shafts or between floors, this cable features a CMR-rated PVC jacket. The snagless RJ45 connector design protects the clips from breakage during frequent insertion cycles, extending the lifecycle of the connection in active network environments. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438458 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43845 TAA compliant?
Yes, this is a TAA-Compliant F-Series cable approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, the shielded STP design and ANSI/TIA-568.2-D compliance allow it to handle 10GBase-T applications and bandwidth-intensive data distribution.
What is the maximum operating temperature for this cable?
This cable is rated for operation in temperatures ranging from -4°F to 167°F (-20°C to 75°C).
What tools are required for installation?
As this is a pre-terminated patch cable with RJ45 male connectors, no specialized installation tools are required for use.
What is the difference between this and a standard UTP cable?
Unlike unshielded cables, this STP model includes an aluminum foil shield to protect against noise and electromagnetic interference in crowded environments.
