14ft (4.3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
14ft TAA-compliant Cat6 snagless UTP network cable in purple with 50-micron gold-plated contacts

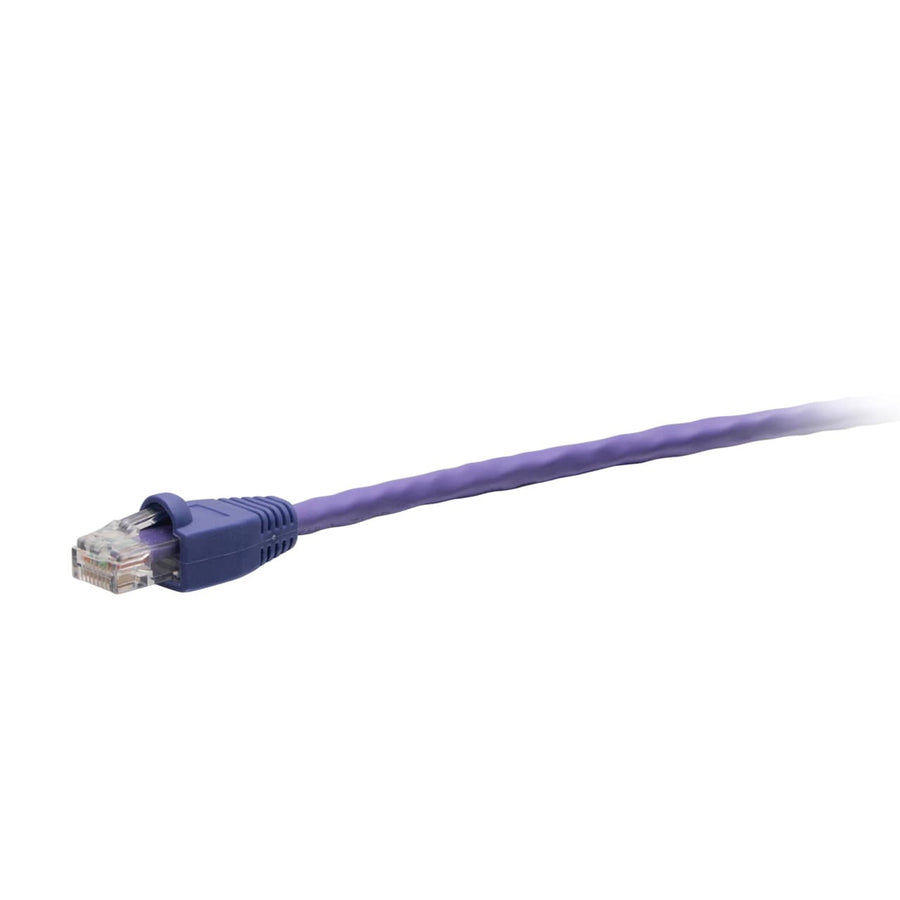

The C2G43560 is a 14 ft (4.3 m) TAA-compliant Cat6 snagless unshielded (UTP) network cable finished in purple. This passive cable is constructed with high-quality, made-in-the-USA stranded copper conductors, providing a maximum frequency of 600 MHz to support demanding 1000BASE-T Gigabit Ethernet applications. Designed for use in network adapters, hubs, switches, routers, and servers, the cable features 50-micron gold-plated contacts to ensure signal integrity. The snagless RJ-45 male connectors include molded boots that protect the clips from snapping during high-frequency insertion cycles and provide additional strain relief. This CMR-rated riser cable is suitable for vertical pathways and is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. Its purple jacket allows for easy color-coding within complex network environments. This cable is TAA compliant, making it suitable for United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435600 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43560 TAA compliant?
Yes, this Cat6 cable is TAA compliant, making it approved for use in United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This cable is designed with an enhanced 600 MHz maximum frequency to support applications including 1000BASE-T (1 Gigabit Ethernet).
What type of jacket rating does this cable have?
This is a CMR rated cable, which is a riser-rated jacket application suitable for vertical pathways.
How does the snagless design help during installation?
The molded snagless boot protects the RJ-45 clips from being snapped off during installation and provides extra strain relief for the cable.
Does this cable use solid or stranded conductors?
The C2G43560 features stranded copper conductors and is a passive, unshielded UTP cable.
