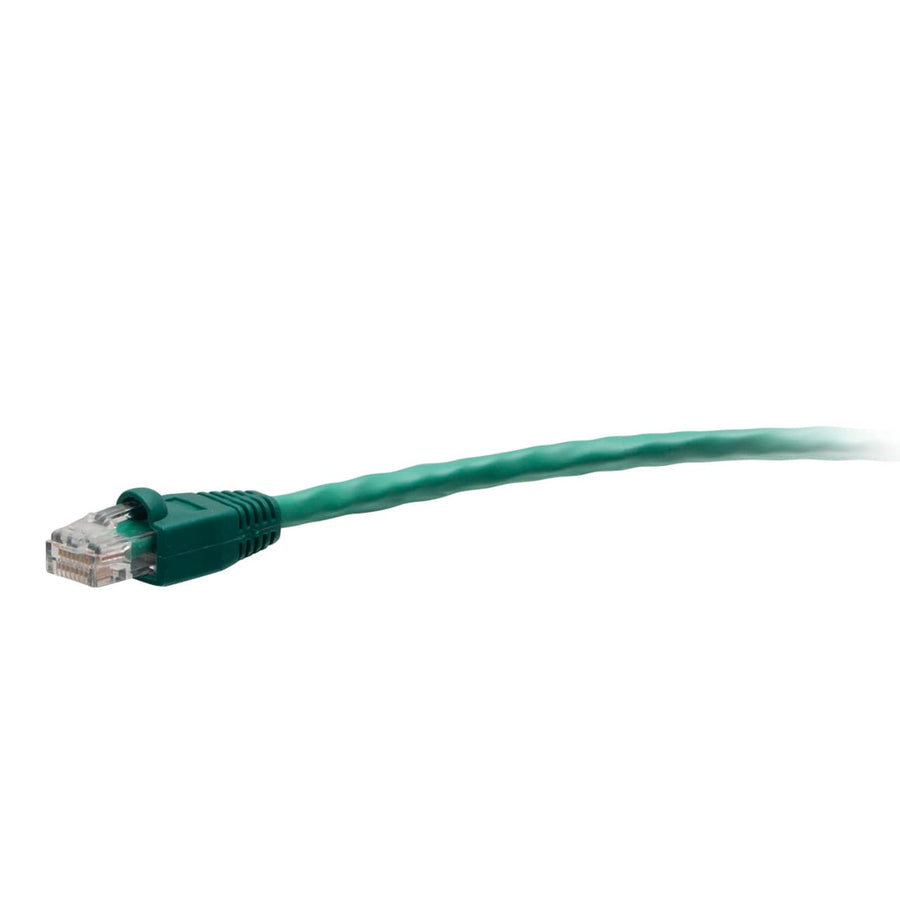

14ft (4.3m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Green
14ft TAA-compliant Green Cat6 Snagless UTP network cable with stranded copper conductors and RJ-45 male connectors
The C2G43497 is a 14 ft (4.3 m) TAA-compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in Green. Built for professional environments that require strict compliance, this cable is approved for use in United States government projects and facilities. It utilizes high-quality, made-in-the-USA stranded copper cabling, providing an enhanced 600 MHz maximum frequency to ensure consistent and reliable performance exceeding standard Cat6 requirements. This passive cable is designed for high-performance applications including 1000BASE-T (1 Gigabit Ethernet) connections for network adapters, hubs, switches, routers, and servers. The cable features 50-micron gold-plated contacts to maintain signal integrity and a molded, snagless boot to protect the RJ-45 clips from damage during installation or high-cycle use. Rated for riser applications (CMR), this PVC jacketed cable operates in temperatures ranging from -4° to 167°F (-20° to 75°C) and follows ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. This 24 AWG cable uses a T568B wiring scheme for standard network connectivity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434979 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43497 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency and supports 1000BASE-T (1 Gigabit Ethernet) applications.
What type of jacket rating does this cable have?
This is a CMR Rated/Riser application cable with a PVC jacket.
What RJ-45 connector type is used on this cable?
The cable features two RJ-45 male connectors with a snagless boot design to prevent clip breakage.
What are the temperature operating limits for the C2G43497?
The operating temperature range for this cable is -4° to 167°F (-20° to 75°C).
