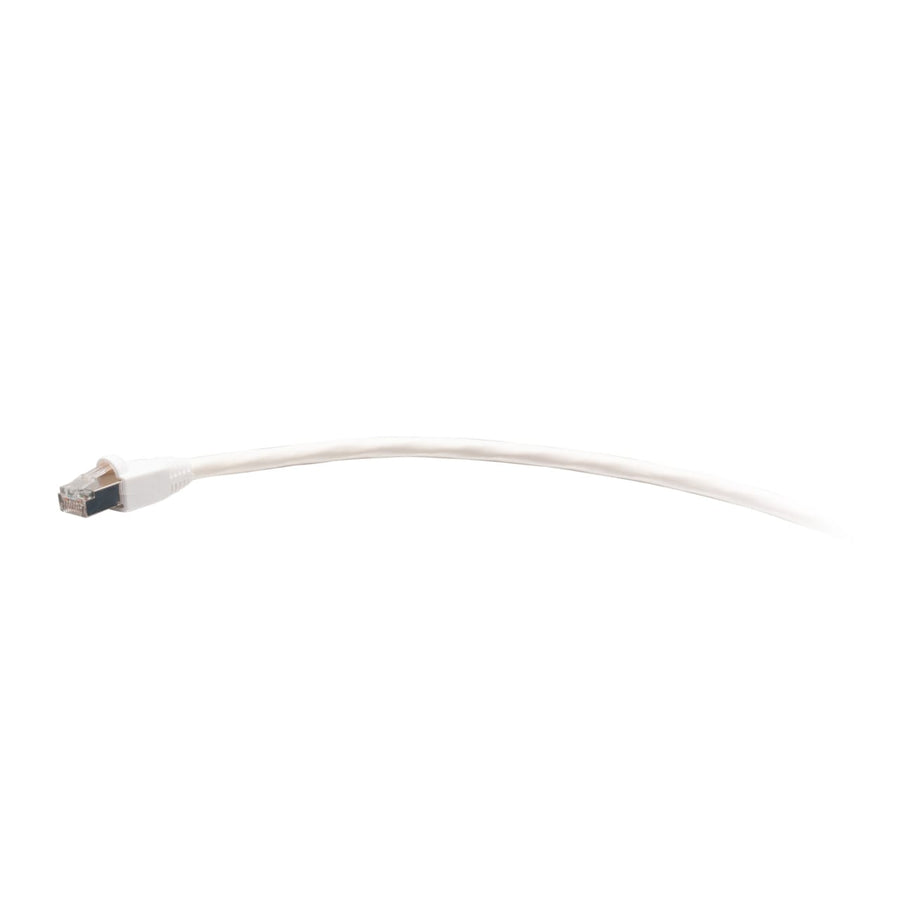

14ft (4.3m) TAA-Compliant F-Series Cat6 Snagless Shielded (STP) Network Cable - White
Shielded Cat6 snagless network cable, 14ft length, TAA-compliant and white finish for high-speed networking
The C2G43787 is a 14ft (4.3m) TAA-compliant Cat6 snagless shielded (STP) network cable in white. This passive cable is engineered to meet the stringent requirements of United States government projects and facilities, ensuring TAA compliance for specialized installations. It features shielded STP construction with aluminum foil shielding to protect high-speed networks from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. Designed for use with network adapters, hubs, switches, routers, and servers, it supports 1000BASE-T (1 Gigabit Ethernet) applications and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. The cable utilizes 26 AWG stranded copper conductors and is protected by a PVC jacket with a CMR riser rating. For reliable physical connectivity, the snagless RJ-45 male connectors feature 50-micron gold-plated contacts and a design that prevents the clips from snapping during high insertion cycles. This cable operates within a temperature range of -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437871 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43787 TAA compliant?
Yes, this is a TAA-compliant F-Series network cable suitable for US government projects and facilities.
What is the maximum data rate and standard for this Cat6 cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Will the connector clips break easily during installation?
The snagless RJ-45 male connector design is specifically engineered to protect the clips from being snapped off during frequent insertion cycles.
Does this cable provide shielding against interference?
Yes, the STP (Shielded Twisted Pair) construction uses aluminum foil shielding to counter EMI, RFI, and alien crosstalk.
What is the cable's jacket rating for installation environments?
This cable features a PVC jacket with a CMR (Riser) rating for use in vertical shafts or plenum-to-parapet applications.
