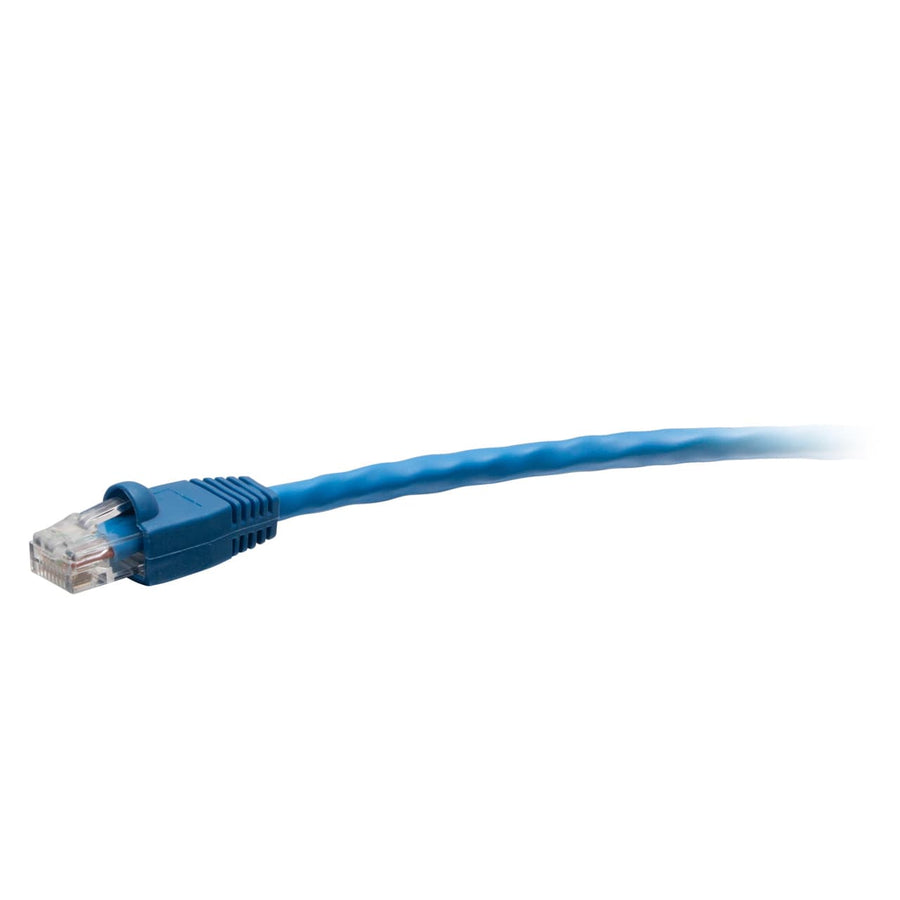

14ft (4.3m) TAA-Compliant F-Series Cat5e Snagless Unshielded (UTP) Network Cable - Blue
14ft TAA-compliant Cat5e snagless UTP network cable, blue, 24 AWG copper with CMR riser rating
The C2G43416 is a 14 ft (4.3 m) TAA-compliant Cat5e snagless UTP network cable designed for critical infrastructure in United States government projects and facilities. This passive cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to maintain signal integrity for 1000BASE-T (1 Gigabit Ethernet) applications. The unshielded twisted pair (UTP) construction is housed in a blue PVC jacket with a CMR riser rating, making it suitable for use in vertical shafts and riser applications. To facilitate easier installation in high-density environments, the snagless RJ-45 male connectors include a molded boot that protects the clips from being snapped off and provides additional strain relief. This F-Series cable is manufactured with high-quality, made-in-the-USA raw cable, offering an enhanced 350 MHz maximum frequency for more reliable performance than standard Cat5e cabling. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, ensuring compatibility with network adapters, hubs, switches, routers, and servers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.5 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434160 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43416 TAA compliant?
Yes, this cable meets TAA compliant requirements, making it approved for use in United States government projects and facilities.
What is the maximum frequency and speed of this Cat5e cable?
This cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 350 MHz maximum frequency for improved performance.
What jacket rating does this cable have for installation?
This cable features a CMR rated PVC riser jacket, suitable for vertical shaft installations.
Does this cable use solid or stranded copper?
The C2G43416 uses 24 AWG stranded copper conductors and is designed with snagless RJ-45 male connectors.
What documentation is available for submittals?
You can access the TAA Compliant F-Series Cat5e Snagless Unshielded Network Cable PDF for detailed technical information.
