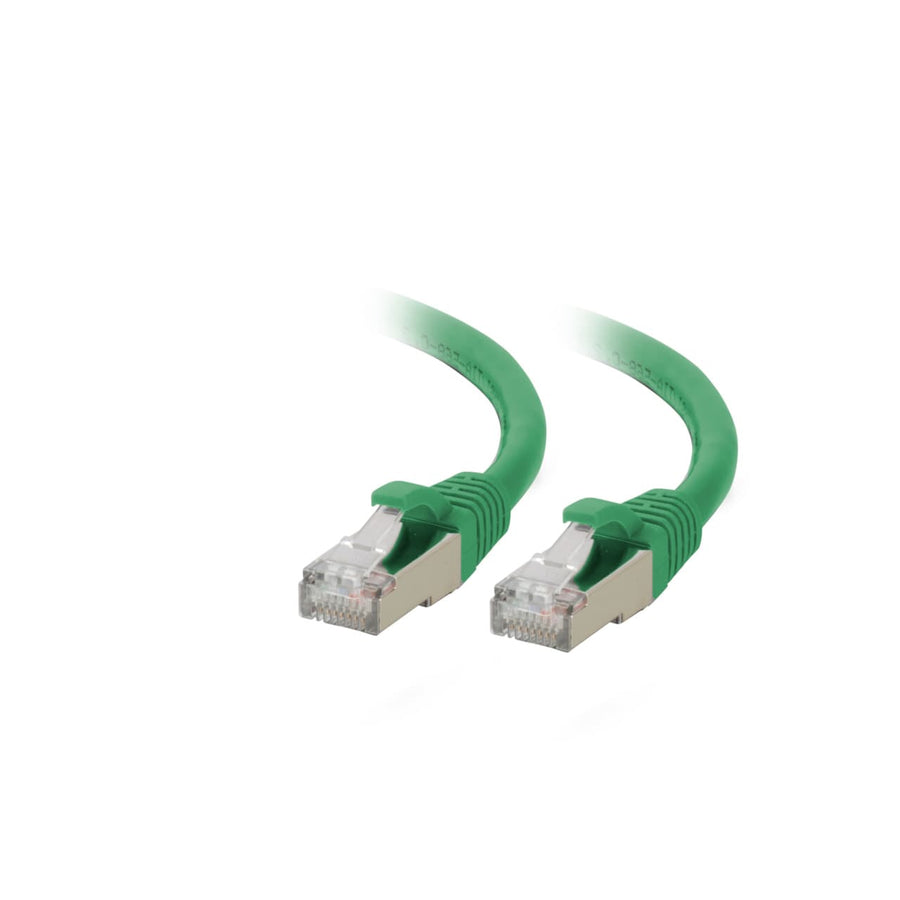

14ft (4.3m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable - Green
Green 14ft Cat6A STP patch cable, snagless design, supports 10Gbps data transfer and 500 MHz bandwidth
The C2G07358 is a 14 ft (4.3 m) Cat6A Snagless Shielded (STP) Ethernet Network Patch Cable in green. Designed for bandwidth-intensive environments, this cable supports 10 Gbps data transfer rates and a 500 MHz bandwidth, making it suitable for use with network adapters, hubs, switches, routers, and HDBaseT applications. The shielded twisted pair (STP) construction protects high-speed network connections from electromagnetic interference and noise. Each cable features 26 AWG stranded copper conductors with 50 µ in gold plating on the RJ-45 male connectors. The snagless, booted connector design protects the RJ-45 lock in high-density installations. Built to meet ANSI/TIA 568 C.2 requirements, these cables include individual length labels for easy identification during installation. This patch cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 30
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | STP |
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Cable Shielding | Shielded STP |
| Category Performance Application | Cat6a |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120073581 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will this Cat6A cable work with 10GbE switches and routers?
Yes, the C2G07358 is designed for 10GBase-T ports, including network adapters, hubs, switches, and routers.
What is the maximum data rate for this patch cable?
This Cat6A STP cable supports a data transfer rate of 10 Gbps and a bandwidth of 500 MHz.
Is this cable suitable for high-density racks?
Yes, the snagless connector design is specifically intended to protect the RJ-45 connector lock in high-density environments.
Does this cable require additional shielding?
The C2G07358 features built-in shielded twisted pair (STP) wires to protect against noise and electromagnetic interference.
Which compliance standards does this cable meet?
The cable is fully tested to meet ANSI/TIA-568-C.2 Cat6a requirements and carries CE, REACH, and RoHS certifications.
