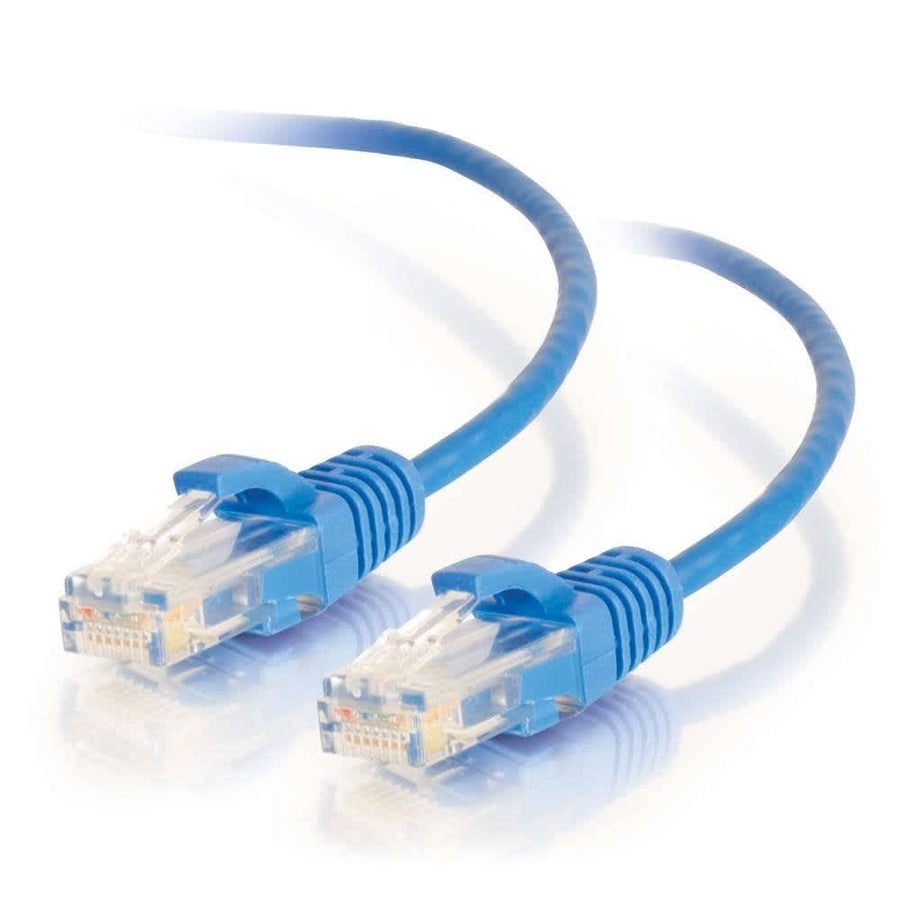

14ft (4.27m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Blue
14ft Blue Cat6 Slim UTP patch cable with snagless boots, 28 AWG conductors, and 0.15 inch diameter for high-density routing
The C2G02214 is a 14ft (4.3 m) Cat6 Slim Unshielded UTP Snagless Ethernet Network Patch Cable in Blue, specifically engineered for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables, resulting in a slim 0.15 in (3.8 mm) profile. This smaller diameter minimizes the surface area of cable bundles, facilitating improved airflow within crowded enclosures. The slim construction allows for a reduced bend radius of 0.6 in (15.2 mm), making it significantly easier to route through high-density cable management panels. This cable is designed for fast Ethernet networks requiring high-bandwidth distribution for voice, data, or video. The molded snagless PVC boots provide strain relief and prevent accidental disconnections during installation. This product is TIA/EIA-568-C.2 compliant and supports data transfer rates up to 10 GBPS with a 500 mHz bandwidth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.19 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022145 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G02214 suitable for high-density datacenter use?
Yes, the 28 AWG slim design reduces cable diameter by 36%, which increases airflow and allows for easier routing in dense management panels.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of slim network patch cables with 90 meters of horizontal cable.
Can I use this cable for PoE/PoE+ applications?
For PoE/PoE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation caused by the reduced diameter.
What is the bend radius for the C2G02214?
This cable features a 0.6 in (15.2 mm) bend radius, which is significantly smaller than standard Cat6 patch cables.
Which standards does this Cat6 cable comply with?
The C2G02214 complies with the ANSI/TIA-568-C.2 standard and is rated for 10 GBPS data transfer.
