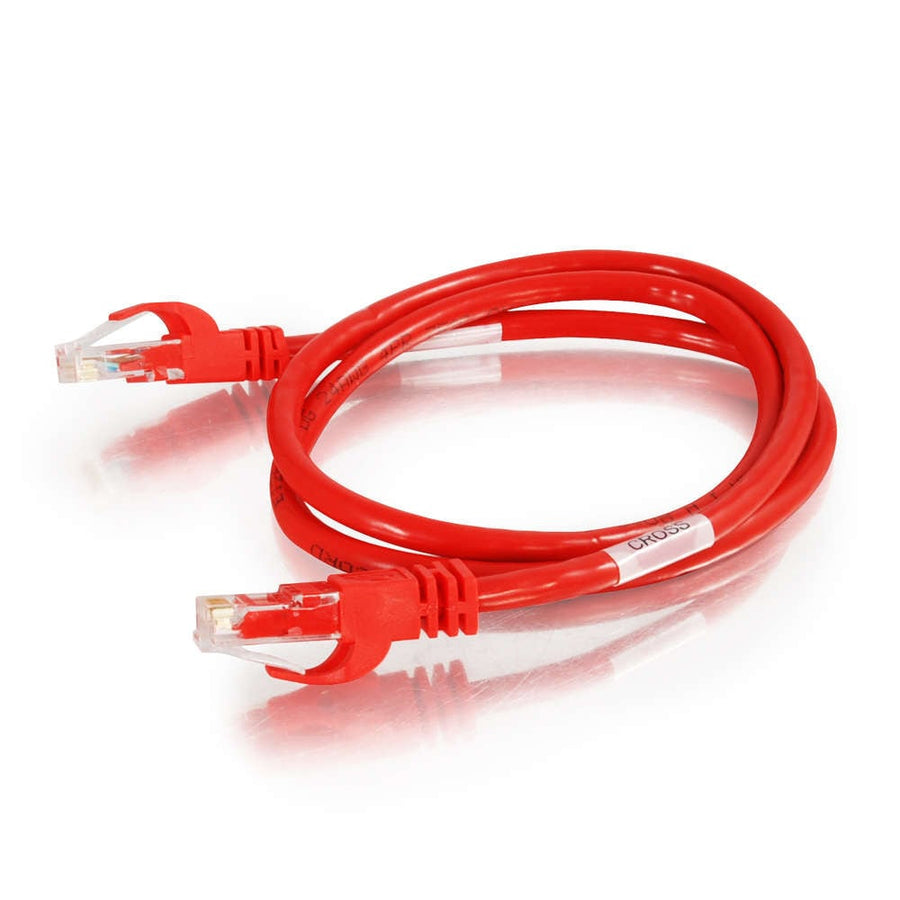

14ft (4.25m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Red
14ft Red Cat6 crossover patch cable with snagless UTP connectors for peer-to-peer networking
The C2G CG27864 is a 14ft (4.3m) Cat6 network crossover patch cable designed to facilitate direct peer-to-peer connections between two computers. By utilizing a crossed pin configuration, this cable allows two devices to share files and data without the requirement of a hub or switch. It is also suitable for connecting network switches or hubs that lack an uplink port to other network hardware. This unshielded twisted pair (UTP) cable is constructed with 24 AWG stranded copper conductors and features a snagless design to protect the RJ-45 clips from damage during installation and removal. The molded PVC jacket and hood material help minimize Near-End Crosstalk (NEXT) levels and reduce impedance and structural return loss (SRL). This cable supports Gigabit Ethernet speeds and is fully tested to meet all TIA/EIA Cat6 standards, providing a reliable connection for high-speed data transmission in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278641 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the C2G CG27864 crossover cable?
This cable enables peer-to-peer connections between two computers for data sharing without a hub or switch. It can also connect switches or hubs that lack uplink ports.
Will this Cat6 cable support Gigabit Ethernet?
Yes, this cable is designed to handle Gigabit Ethernet speeds and is fully tested to meet TIA/EIA Cat6 standards.
How does the snagless design benefit the installer?
The snagless RJ-45 connectors feature a protective hood that prevents the connector clips from being caught or broken during insertion or removal from ports.
What is the specific length and color of this cable?
The CG27864 is a 14ft (4.3 m) cable in a red color, making it useful for color-coded network identification.
Does this cable use shielded or unshielded wires?
This is an unshielded twisted pair (UTP) cable utilizing stranded copper conductors and a PVC jacket.
