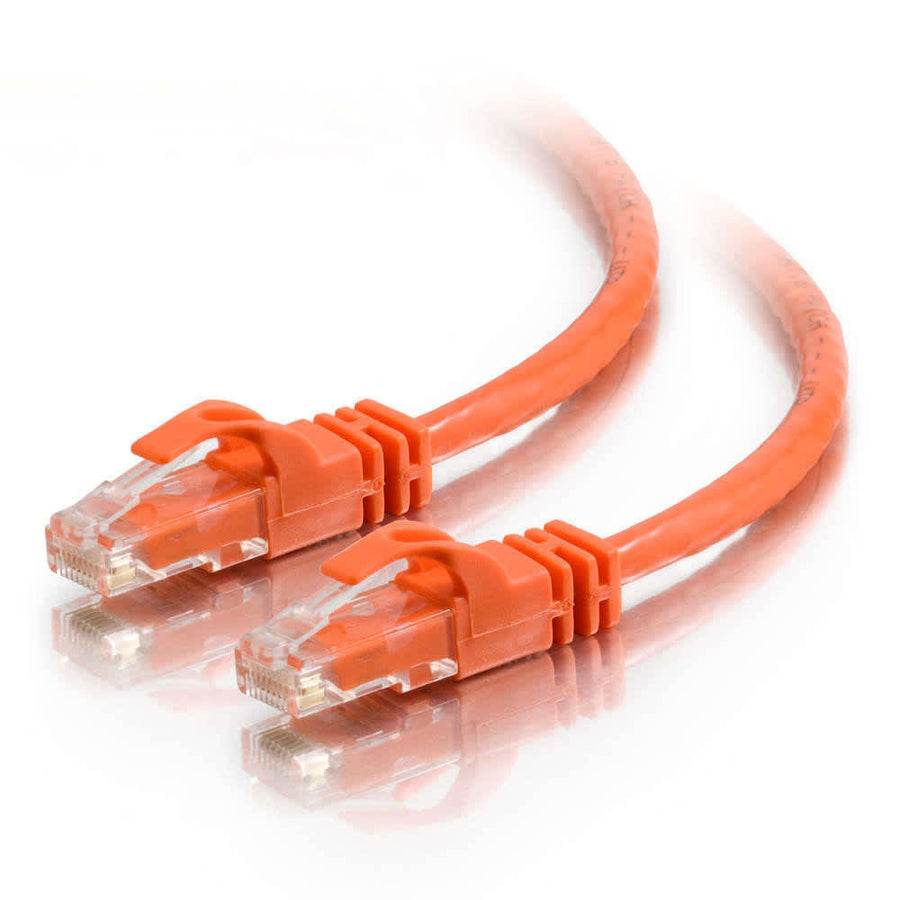

14ft (4.25m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Orange
14ft Cat6 UTP crossover patch cable in orange with snagless RJ-45 connectors for peer-to-peer networking
The C2G CG27894 is a 14ft (4.3 m) Category 6 unshielded twisted pair (UTP) crossover patch cable designed for direct device-to-device connectivity. This orange cable features a crossed pin configuration, allowing two computers to be connected peer-to-peer for file or data sharing without the requirement of a hub or switch. It is also suitable for connecting network switches or hubs that lack an uplink port. Built to TIA/EIA Cat6 standards, this cable supports Gigabit Ethernet speeds and is engineered to reduce impedance and structural return loss (SRL) for error-free transmission. The snagless design incorporates a PVC connector hood that protects the clips from damage during insertion and removal while providing strain relief against excessive pulling. With a 0.24 in (6.2 mm) diameter and a 0.6 in (15.2 mm) bend radius, this stranded copper cable is suitable for various networking environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.43 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278948 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the C2G CG27894 crossover cable?
This cable is used to connect two computers directly for peer-to-peer data sharing, or to connect two switches/hubs that do not feature an uplink port.
Will this cable work for Gigabit Ethernet speeds?
Yes, this Cat6 crossover cable is designed to handle the throughput required for Gigabit Ethernet speeds.
What is the difference between this and a standard patch cable?
Unlike a standard straight-through cable, this cable has a crossed pin configuration specifically for connecting similar devices like two computers or two switches.
Is the RJ-45 connector protected from damage?
Yes, the snagless design features a molded PVC hood that protects the connector clips from snapping during installation and removal.
What are the environmental operating limits for this cable?
The cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
