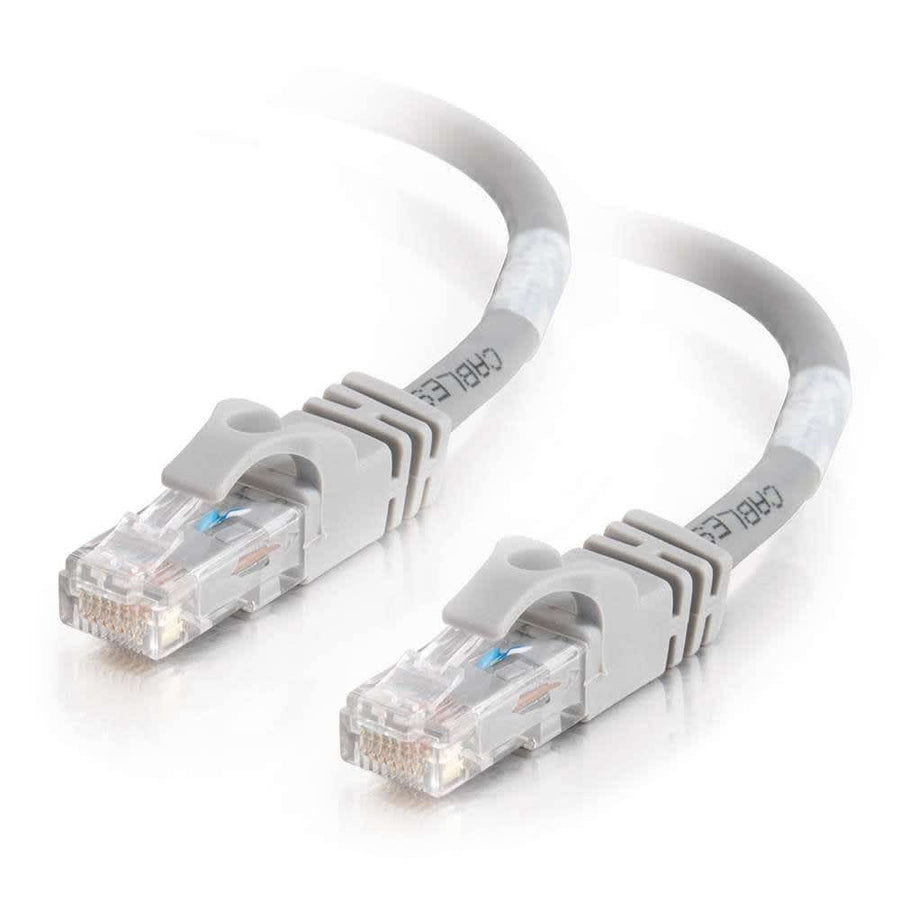

14ft (4.25m) Cat6 Snagless Unshielded UTP Network Crossover Patch Cable - Gray
14ft Cat6 crossover patch cable, 500 mHz bandwidth, featuring snagless RJ-45 connectors for peer-to-peer networking
The C2G CG27824 is a 14ft (4.3 m) Cat6 network crossover patch cable designed for peer-to-peer connections between two computers. By utilizing a crossed pin configuration, this cable allows devices to share files or data directly without the need for an intermediate hub or switch. It is also an effective solution for connecting network switches or hubs that lack an uplink port. This unshielded (UTP) cable is constructed with 24 AWG stranded copper conductors and a PVC jacket, ensuring high-quality signal transmission for Gigabit Ethernet speeds. The design focuses on minimizing Near-End Crosstalk (NEXT) through a shortened body plug, which also helps reduce impedance and structural return loss (SRL). For ease of installation, the snagless connector design protects the clips during repeated plugging and unplugging, preventing damage while allowing for easy removal. This gray cable operates within a temperature range of -4°F to 176°F (-20°C to 80°C) and supports a bandwidth of 500 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 18
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Snagless |
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Snagless |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120278245 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the primary use for the C2G CG27824 crossover cable?
It is used to connect two computers directly for file sharing or to connect two network switches/hubs that do not have an uplink port.
Will this Cat6 cable support Gigabit Ethernet speeds?
Yes, this Cat6 patch cable provides the necessary throughput to handle up to Gigabit Ethernet speeds.
Does the snagless design protect the RJ-45 clips?
Yes, the molded snagless design is specifically intended to prevent unwanted cable snags and protect the clips during installation and removal.
What are the electrical characteristics of this cable?
This cable features an impedance of 100 ohms, a capacitance of 5600pf/100m, and a maximum conductor DC resistance of 9.38 ohms per 100m.
What is the operating temperature range for this patch cable?
This cable is rated for operating temperatures between -4°F (-20°C) and 176°F (80°C).
