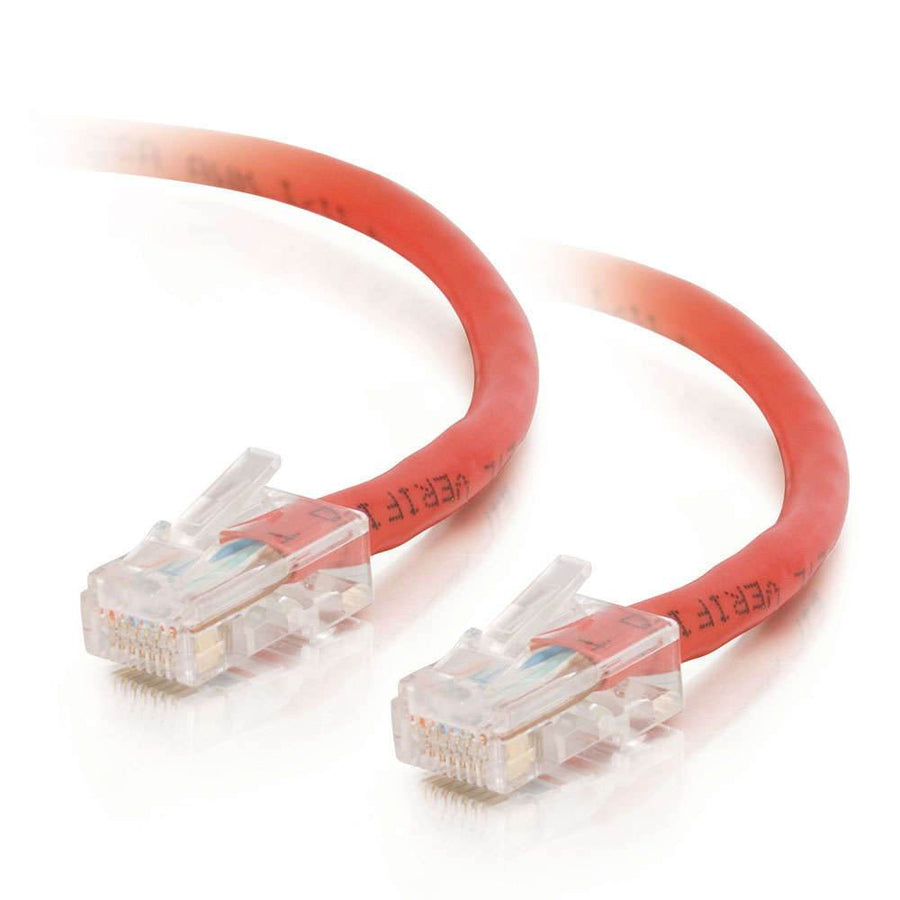

14ft (4.25m) Cat5e Non-Booted Unshielded UTP Network Crossover Patch Cable - Red
Red 14ft Cat5e UTP crossover patch cable for direct peer-to-peer computer or switch-to-switch connections
The C2G CG26706 is a 14 ft (4.3 m) Cat5e UTP network crossover patch cable in red, specifically engineered for peer-to-peer networking. This cable features a crossed pin configuration, allowing two computers to connect and share files or data directly without the requirement of an intermediary hub or switch. It is also suitable for connecting network switches or hubs that lack an uplink port to other networking equipment. Constructed with stranded copper conductors and a 24 AWG wire gauge, this cable is built to meet all Cat5e TIA/EIA standards. The design focuses on reducing impedance and structural return loss (SRL) by bonding individual pairs to maintain twist-spacing through the termination point. This construction, combined with a non-booted, shortened body plug, is intended to minimize Near-End Crosstalk (NEXT) levels. This unshielded cable operates within a temperature range of -4°F to 176°F (-20°C to 80°C) and utilizes a PVC jacket and HDPE insulation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 14 ft (4.3 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | UTP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Non-Booted |
| Category Performance Application | Cat5e |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Insulation Material | HDPE (High-density Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120267065 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the purpose of the CG26706 crossover cable?
The CG26706 allows you to connect two computers directly for peer-to-peer data sharing or to link two switches that do not have an uplink port.
Does this cable support Cat5e performance standards?
Yes, this is a Cat5e cable rated for 350 mHz bandwidth, utilizing TIA/EIA standard wiring schemes.
What is the connector type for this patch cable?
This cable is equipped with non-booted RJ-45 male connectors on both ends.
Is this cable shielded or unshielded?
This is an unshielded UTP (Unshielded Twisted Pair) cable featuring a PVC jacket and HDPE insulation.
What are the operating temperature limits for this cable?
The operating temperature range for this cable is -4°F to 176°F (-20°C to 80°C).
