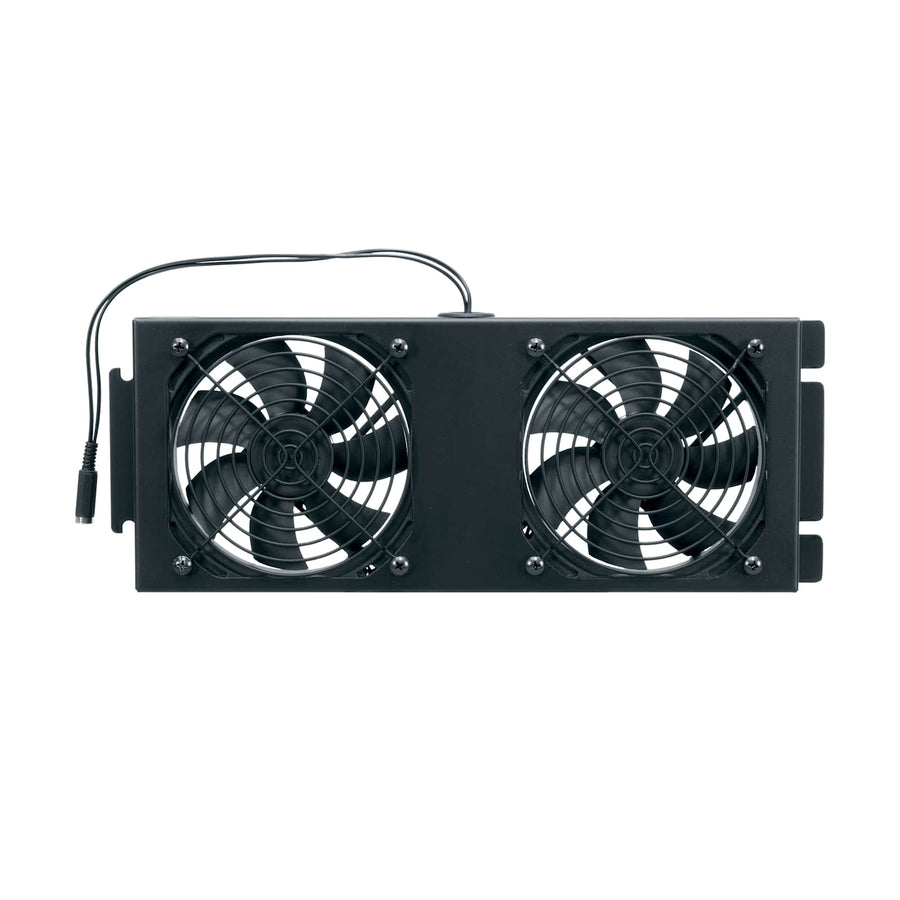

138 CFM Essex Fan Top
Quiet 138 CFM DC fan assembly for Essex Collection QAR and MMR Series racks
The Middle Atlantic FANTOP-138DC is a dedicated cooling solution designed to attach to the top of Essex Collection racks. This unit is engineered to work specifically with QAR Series and MMR Series racks to help manage thermal loads and ensure AV system reliability. The assembly features two energy-efficient DC fans that operate at a quiet 32 dBA to remove heat without adding excessive ambient noise to the environment. For installers requiring increased airflow, two of these fan tops can be utilized per rack to achieve a total of 276 CFM. Installation is straightforward, as the unit is designed to slide into place and be tightened for quick integration. This TAA compliant component is an essential addition for high-density rack environments where heat dissipation is critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| AC Voltage Input | 120 |
| CFM | 138 |
| Depth | 1.48 in (3.8 cm) |
| Height | 5.36 in (13.6 cm) |
| Shipping Weight | 3.6 lbs (1.6 kg) |
| Volts DC | 12 VDC |
| Width | 13.97 in (35.5 cm) |
| Color | Black |
| Finish | Flat |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747235658 |
Resources
Questions about this part
Will this fan top fit my Essex rack?
The FANTOP-138DC is specifically designed to attach to the top of any QAR Series or MMR Series racks.
How can I increase the total CFM for my rack?
You can install two of these fan tops per rack to achieve a total maximum airflow of 276 CFM.
Does this unit support automated temperature control?
Yes, the airflow can be managed by adding a Thermostatic Fan Control option.
Is this product TAA compliant?
Yes, the FANTOP-138DC is TAA compliant.
How is the installation process handled?
The fan top is designed for quick integration by sliding the unit into place and tightening it.
