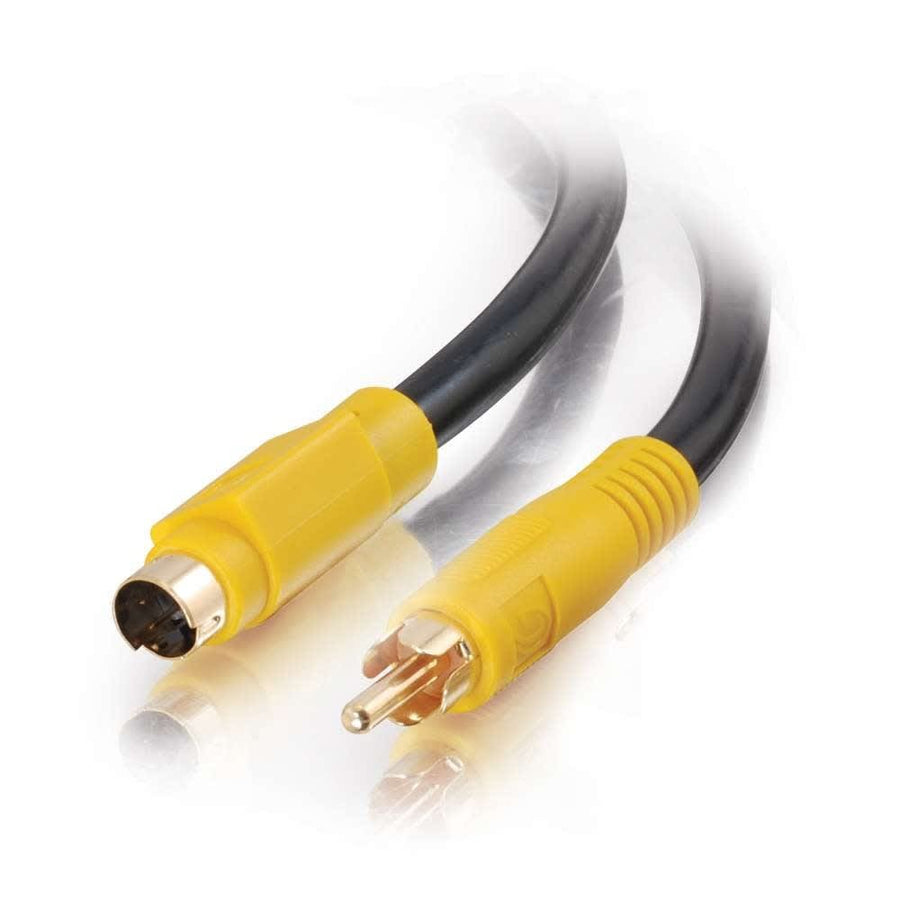

12ft (3.7m) Value Series™ Bi-Directional S-Video to Composite Video Cable
12 ft (3.7 m) bi-directional S-Video to Composite Video cable for connecting legacy AV devices to modern or standard displays
The C2G CG27965 is a 12 ft (3.7 m) bi-directional video cable designed to bridge the gap between legacy S-Video devices and composite-only displays. This cable allows you to connect a laptop, PC, or game console to a TV that lacks a dedicated S-Video port. Because it is bi-directional, it converts a composite RCA signal to S-Video and vice versa without the need for external couplers, preventing the signal loss often associated with intermediate adapters. The 75 Ohm coax cable is double-shielded with 85% aluminum foil and braid to minimize noise and distortion. This provides a crisp picture when connecting devices like VCRs, DVD players, or camcorders to an A/V receiver or monitor. The flexible PVC jacket is NTSC and PAL compatible. Additionally, the precision-engineered connectors are designed to fit both 4-pin and 7-pin S-Video jacks commonly found on desktops and laptops.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Cable Length | 12 ft (3.7 m) |
| Shipping Weight | 0.59 lbs (0.3 kg) |
| Cable Type | RCAS-Video |
| Color | Black |
| Connector 1 | (1) S-Video Male(1) S-Video Male |
| Connector 2 | (1) RCA Composite Video Male(1) RCA Composite Video Male |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120279655 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Questions about this part
Will this cable work to connect my laptop to a TV without an S-Video port?
Yes, the CG27965 converts the composite RCA signal to S-Video (and vice versa), allowing connection to displays lacking an S-Video jack.
What type of S-Video connectors does this cable support?
The precision-engineered S-Video male connectors are designed to fit both 4-pin and 7-pin S-Video jacks found on desktops and laptops.
Does this cable require any additional adapters to function?
No, because the CG27965 is bi-directional, it converts the signal internally, so you do not need to use couplers that could cause signal loss.
Is this cable compatible with different video standards?
Yes, this cable is compatible with both NTSC and PAL video standards.
What is the total length of the CG27965 cable?
The CG27965 cable has a total length of 12 ft (3.7 m).
