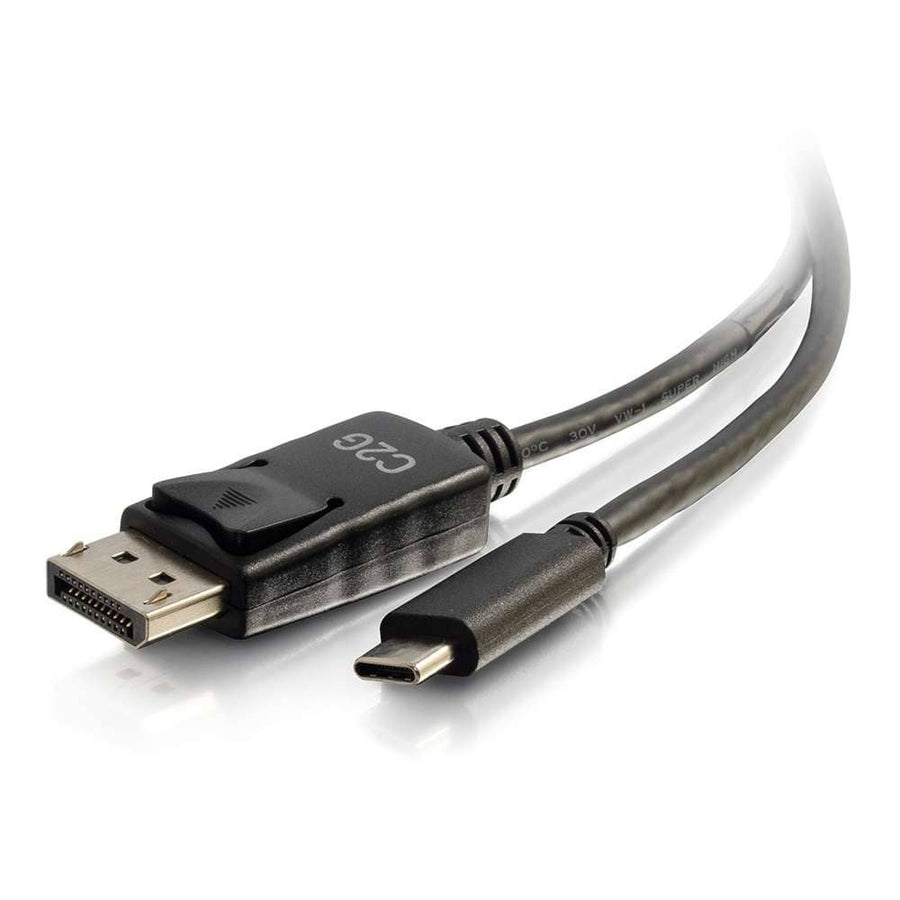

12ft (3.7m) USB-C to DisplayPort™ Adapter Cable 4K 30Hz - Black
12ft USB-C to DisplayPort adapter cable supporting 4K @ 30Hz resolution for laptops and projectors
The C2G CG26904 is a 12 ft (3.7 m) USB-C to DisplayPort adapter cable designed to provide a direct connection between USB-C enabled laptops and DisplayPort inputs on projectors or displays. This cable form factor serves as a convenient solution for office, workspace, and classroom environments by eliminating the need for separate adapters and additional patch cables. By utilizing the integrated audio/video support built into USB Type-C ports, the CG26904 delivers a high-quality video signal up to a 4K resolution (4096 x 2160 at 30Hz). The cable features a reversible and symmetrical USB-C connector, ensuring easy orientation during setup. It is fully compatible with Thunderbolt™ 3 and USB 3.1 ports, providing high-speed data transfer rates of up to 10 GBPS. This is a plug-and-play solution that requires no drivers for operation. The 0.19 in (4.7 mm) diameter cable is finished with a durable PVC jacket and is designed to operate in temperatures ranging from 32° to 122°F (0° to 50°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.36 lbs (0.2 kg) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Cable Type | AdapterDisplayPortUSB |
All other specifications 14
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) DisplayPort Male(1) DisplayPort Male |
| Product Type | AdapterCable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120269045 |
| Video Input Support | DisplayPortUSB-C |
| Video Output Support | DisplayPortUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this cable work with my Thunderbolt 3 laptop and a DisplayPort projector?
Yes, the CG26904 is compatible with both Thunderbolt™ 3 and USB 3.1 ports to provide a direct connection to DisplayPort inputs.
What is the maximum resolution supported by the CG26904?
This adapter cable supports video resolutions up to 4K @ 30Hz (4096 x 2160 at 30Hz).
Do I need to install drivers to use this USB-C to DisplayPort cable?
No, this is a plug-and-play cable that does not require any driver installation to function.
How long is the CG26904 adapter cable?
The cable has a total length of 12 ft (3.7 m) and a cable diameter of 0.19 in (4.7 mm).
Is the USB-C connector reversible?
Yes, the cable features a reversible, symmetrical USB-C connector for easier installation.
