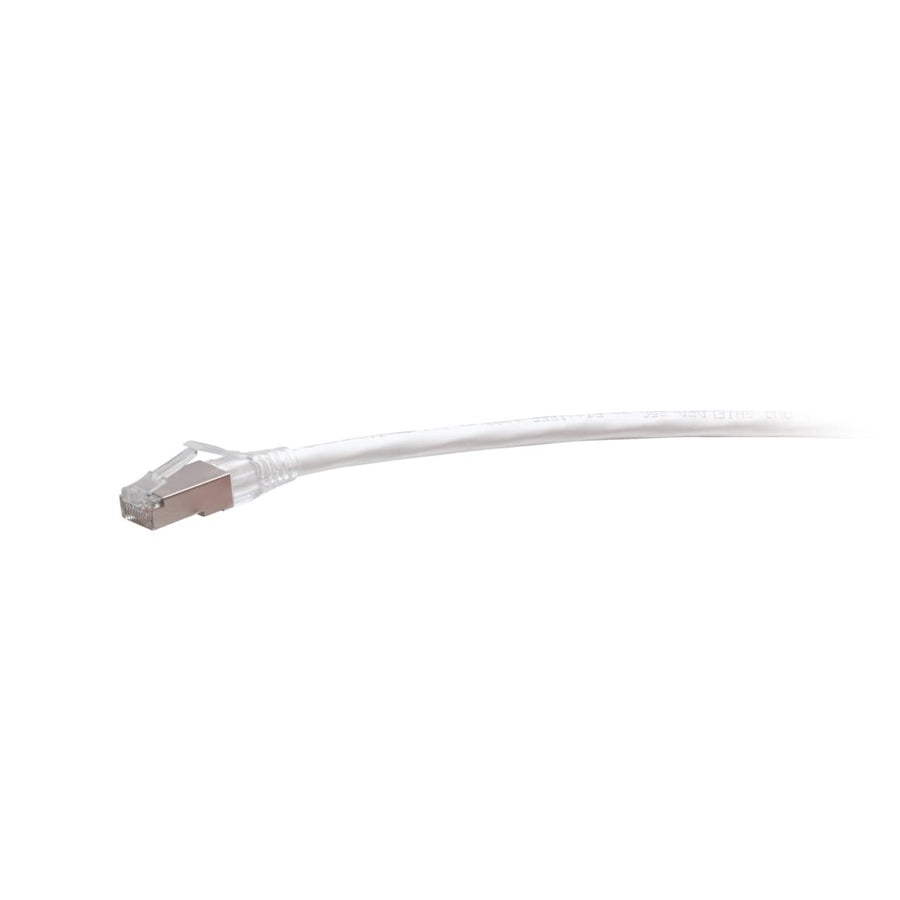

12ft (3.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
12ft shielded Cat6a patch cable, TAA-compliant, featuring snagless RJ45 connectors and white PVC jacket
The C2G43970 is a 12 ft (3.7 m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in white. Designed to meet the strict requirements of United States government projects and facilities, this cable is TAA compliant and utilizes high-quality, made-in-the-USA copper cabling for reliable performance. This passive cable features stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity for bandwidth-intensive applications. The snagless RJ45 connector design protects the clips from damage, making it an excellent choice for environments with high insertion cycles. This shielded STP cable is built to handle 10GBase-T ports and equipment, including routers, switches, hubs, network adapters, and patch panels. The aluminum foil shielding is specifically designed to counter electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. This cable is rated for use in riser applications (CMR Rated) and meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is suitable for operating in temperatures ranging from -4° to 167°F (-20° to 75°C). The white PVC jacket allows for easy identification in complex network environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439707 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43970 approved for government installations?
Yes, this cable is TAA Compliant, making it suitable for use in United States government projects and facilities.
Will this Cat6a cable work for 10 Gigabit Ethernet?
Yes, this cable is designed for 10GBase-T ports and equipment, helping to reduce impedance and structural return loss (SRL).
What is the difference between this and a standard UTP cable?
Unlike unshielded cables, this SKU features Shielded STP construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
What tools are needed to install this C2G43970 cable?
As this is a pre-terminated patch cable, no specialized installation tools are required for use.
What is the maximum operating temperature for this cable?
The cable is rated to operate in temperatures as high as 167°F (75°C) and as low as -4°F (-20°C).
