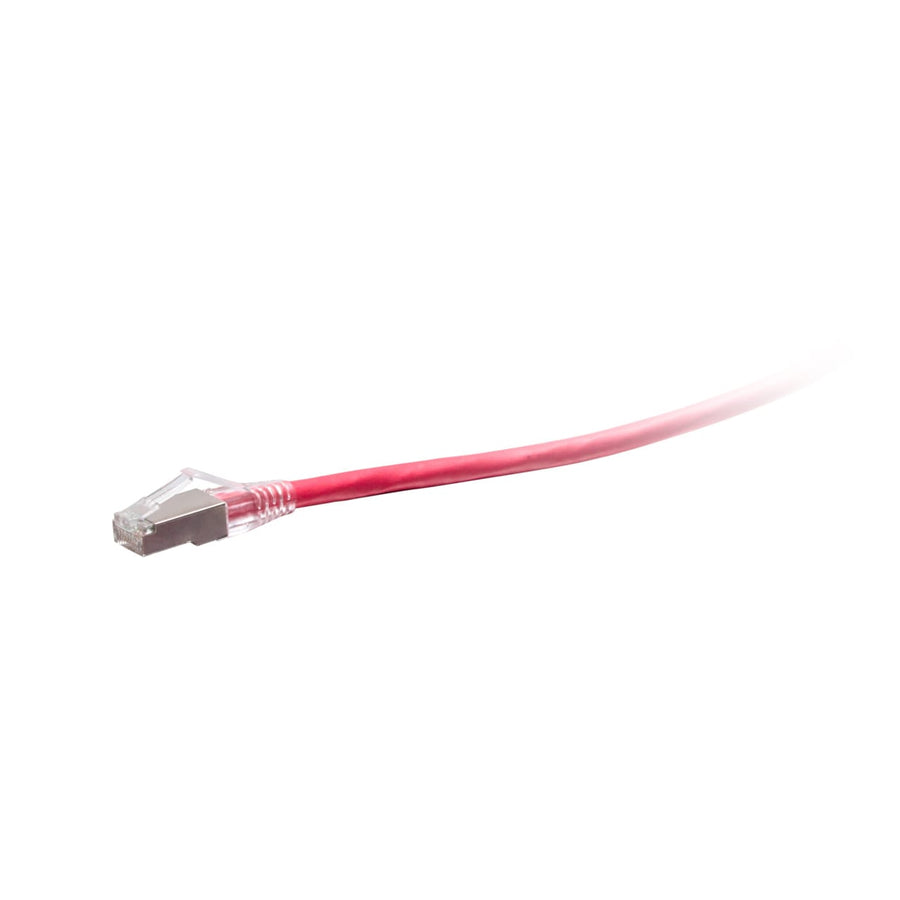

12ft (3.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Red
12ft Red Cat6a Snagless Shielded STP patch cable, TAA-Compliant, for 10GBase-T high-speed networking
The C2G43886 is a 12 ft (3.7 m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable in Red, specifically designed to meet the requirements of United States government projects and facilities. This passive patch cable is engineered for 10GBase-T ports and equipment, providing reliable connectivity for network adapters, hubs, switches, routers, DSL/cable modems, and patch panels. It features a shielded STP construction with an aluminum foil shield and copper stranded conductors to protect high-speed 10 Gigabit Ethernet connections from EMI, RFI, and alien crosstalk. The cable is CMR rated with a PVC jacket and utilizes a snagless RJ45 design to protect the clips from damage during high-frequency insertion cycles. With 50-micron gold-plated contacts and a T568B wiring scheme, this cable ensures signal integrity for bandwidth-intensive video, voice, and data distribution applications. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Red |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438861 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43886 TAA compliant for government contracts?
Yes, the C2G43886 is TAA-Compliant, making it approved for use in United States government projects and facilities.
What is the maximum data rate and application for this Cat6a cable?
This Cat6a cable is designed for 10GBase-T high-speed networking and bandwidth-intensive video, voice, and data distribution applications.
Does this cable provide shielding against interference?
Yes, the STP shielding utilizes an aluminum foil shield to protect against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk.
What are the connector types on the C2G43886?
This cable features two RJ-45 Male connectors with a T568B wiring scheme and 50-micron gold-plated contacts.
How does the snagless design benefit installers?
The snagless RJ45 design protects the connector clips from being easily snapped off, which is beneficial for applications involving high insertion cycles.
