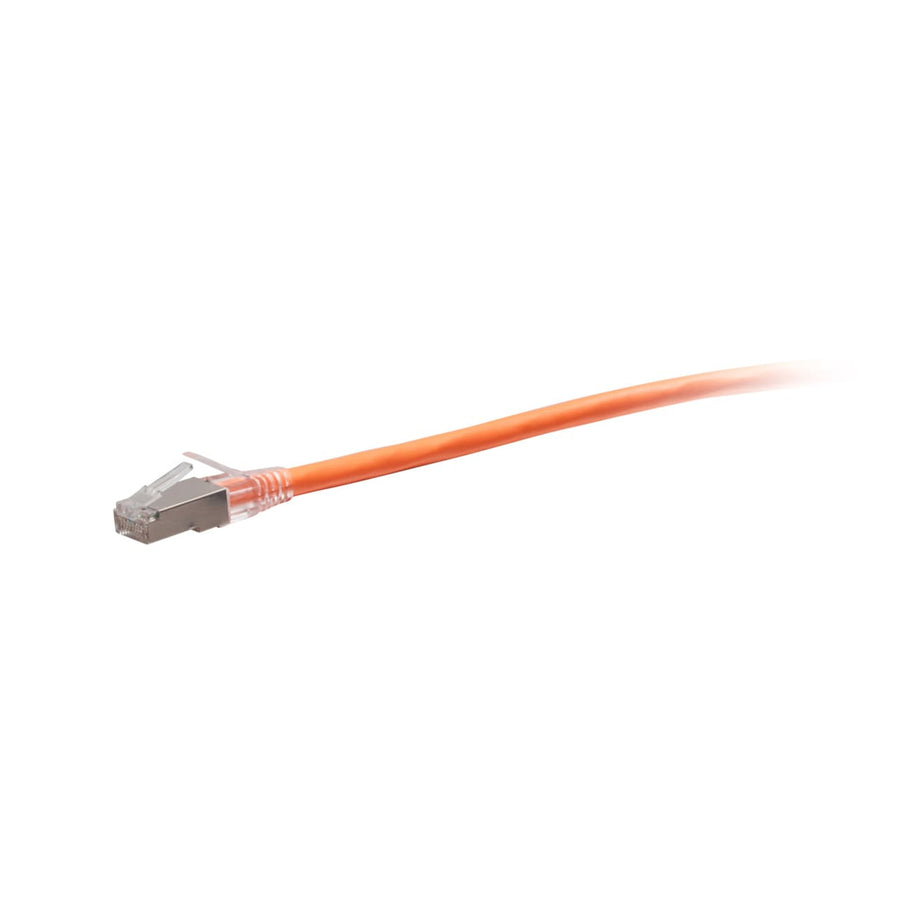

12ft (3.7m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
12ft (3.7m) Orange Cat6a STP patch cable, TAA-compliant, featuring snagless RJ-45 connectors and 10GbE support
The C2G43928 is a 12ft (3.7m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in Orange. Engineered for 10GBase-T ports and high-speed 10 Gigabit Ethernet environments, this passive patch cable is designed to protect critical network connections from electromagnetic interference (EMI), RFI, and alien crosstalk. It features a shielded STP construction with aluminum foil over stranded copper conductors to maintain signal integrity for bandwidth-intensive video, data, and voice distribution. This cable utilizes 50-micron gold-plated contacts and snagless RJ-45 male connectors to prevent clip breakage during high-frequency insertion cycles. The PVC jacket is CMR rated and riser rated, suitable for vertical pathways. Meeting ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, this cable is approved for use in United States government projects and facilities requiring TAA compliance. The 0.26 in (6 mm) diameter cable provides a reliable solution for connecting network adapters, hubs, switches, routers, DSL/cable modems, and patch panels.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439288 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43928 TAA compliant for government projects?
Yes, this C2G43928 cable is TAA-compliant and approved for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, this STP shielded cable is designed to support 10GBase-T and bandwidth-intensive 10 Gigabit Ethernet applications.
What is the difference between this cable and the unshielded versions?
The C2G43928 features Shielded STP construction with aluminum foil to protect against EMI, RFI, and alien crosstalk in high-speed environments.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
Can I use this cable in a riser application?
Yes, the jacket is CMR rated and specifically designed for riser applications.
