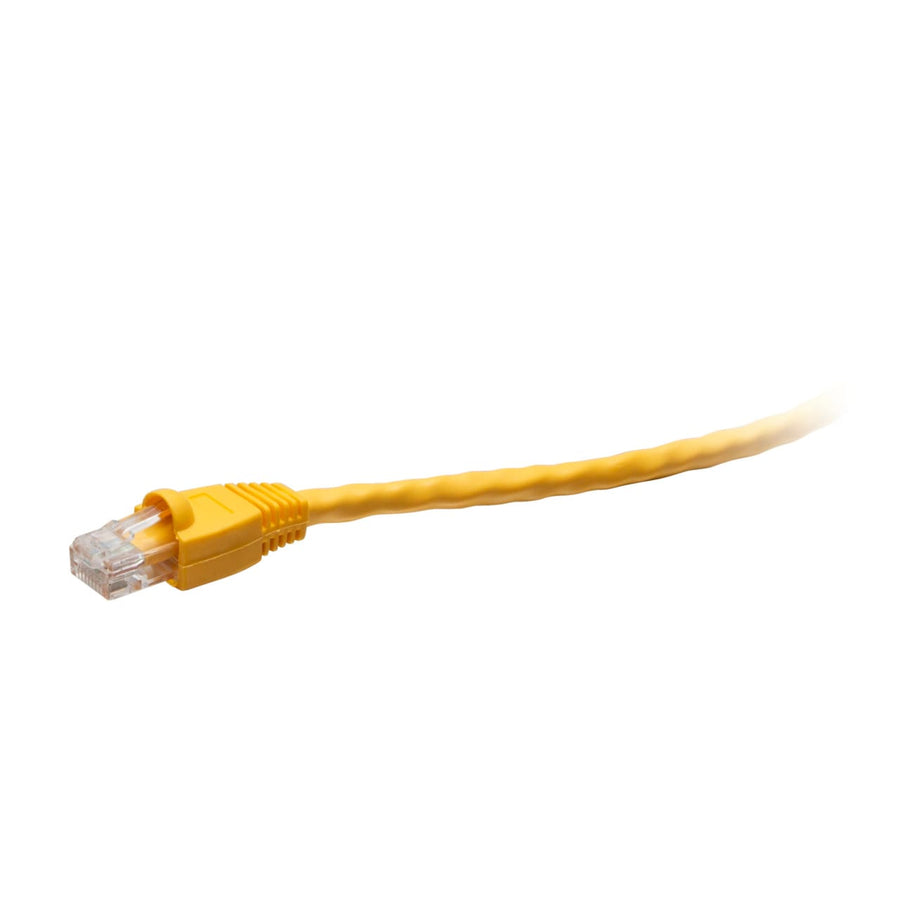

12ft (3.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
Yellow Cat6 snagless UTP network cable, 12ft (3.7m) length, TAA-compliant and CMR rated for government facility use
The C2G43517 is a 12ft (3.7m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in yellow. This passive cable is constructed with high-quality, made in the USA stranded copper cabling, supporting a maximum frequency of 600 MHz. This enhanced frequency provides increased performance compared to standard Cat6 cables for applications requiring 1000BASE-T (1 Gigabit Ethernet) connectivity. It features 50-micron gold-plated contacts to improve signal integrity and a molded, snagless RJ-45 boot that provides extra strain relief and protects the clips from snapping during high-cycle insertion. This CMR-rated riser cable is designed for use in network adapters, hubs, switches, routers, and servers. It is built to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. Because this SKU is TAA-compliant, it is approved for use in United States government projects and facilities. It operates within a temperature range of -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435174 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43517 TAA compliant for government projects?
Yes, this C2G43517 cable meets TAA compliant requirements and is approved for use in United States government projects and facilities.
What is the maximum frequency and performance of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency, supporting 1000BASE-T (1 Gigabit Ethernet) applications.
Will this cable work in a plenum-rated environment?
No, this cable has a CMR (Riser) jacket rating, which is intended for riser applications rather than plenum environments.
What does the snagless design provide for this cable?
The molded snagless boot provides extra strain relief and protects the RJ-45 clips from being snapped off during installation.
What is the conductor material and contact plating?
The cable uses stranded copper conductors and features 50-micron gold-plated contacts to ensure signal integrity.
