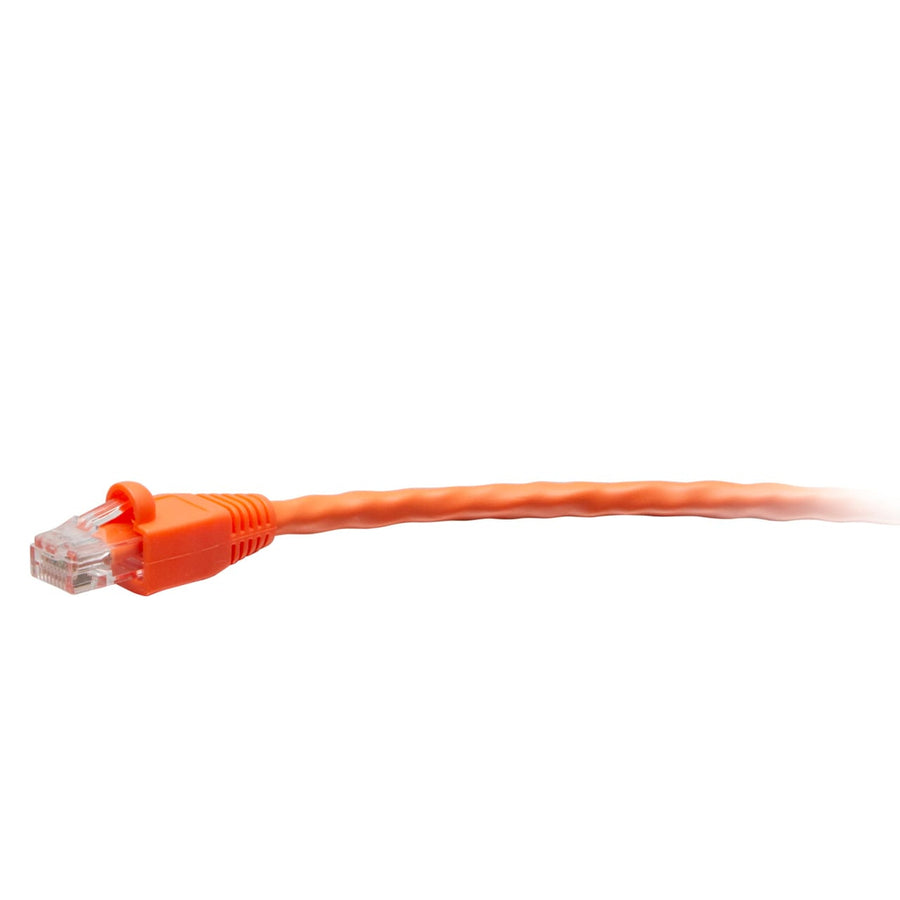

12ft (3.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Orange
Orange Cat6 Snagless UTP network cable, 12ft length, TAA-compliant for government and commercial projects
The C2G43538 is a 12ft (3.7m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable in orange. This cable is specifically approved for use in United States government projects and facilities due to its TAA compliance. It is designed to support 1000BASE-T (1 Gigabit Ethernet) and other high-performance applications for network adapters, hubs, switches, routers, and servers. The cable features a snagless RJ45 connector design, which uses a molded boot to protect the clips from damage and provide extra strain relief during installation or in high-insertion cycle environments. It is constructed with high-quality, made in the USA copper cabling that offers an enhanced 600 MHz maximum frequency for more consistent performance than standard Cat6 cables. Each connector is equipped with 50-micron gold-plated contacts to improve signal integrity. This unshielded twisted pair cable uses 24 AWG stranded copper conductors and follows the T568B wiring scheme. The CMR-rated PVC jacket is suitable for riser applications and is rated for operating temperatures between -4° - 167°F (-20° - 75°C). This product carries a lifetime warranty and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.27 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435389 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43538 TAA compliant?
Yes, this cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency for increased performance over standard Cat6 cables.
What is the wiring scheme for the C2G43538?
The cable uses a T568B wiring scheme with RJ-45 male connectors on both ends.
What is the jacket rating for this orange network cable?
This is a CMR-rated riser cable with a PVC jacket suitable for riser applications.
Does this cable include a snagless boot?
Yes, it features a molded snagless boot to protect the RJ45 clips from being snapped off during installation.
