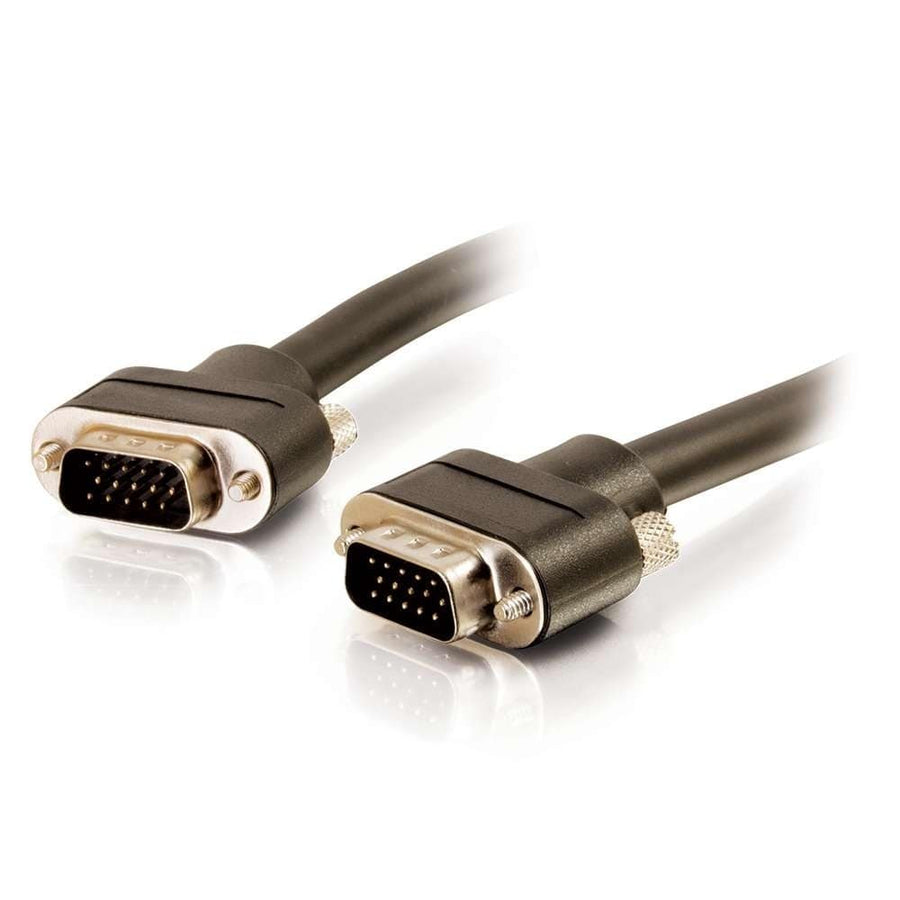

12ft (3.7m) Select VGA Video Cable M/M - In-Wall CMG-Rated
12 ft in-wall rated VGA male to male cable supporting resolutions up to QXGA (2048x1536) with CMG and FT4 ratings
The CG50214 is a 12 ft (3.7 m) VGA video cable designed for source to display connectivity in in-wall commercial or in-home desktop environments. This cable features a CMG-rated and FT4-rated PVC jacket, making it suitable for in-wall applications. It is engineered to support high-resolution video up to QXGA (2048x1536). To ensure optimal signal integrity and communication of display capabilities, all 15 pins are wired to provide support for EDID and DDC2 (E-DDC) signals. The low-profile, rounded connectors are designed to facilitate easy installation in restricted spaces, such as behind a projector mount pole. This cable maintains a 0.33 in (8.5 mm) diameter and a 2.01 in (51 mm) bend radius, providing a reliable connection for VGA-based video output and input requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.33 in (8.5 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shipping Weight | 0.9 lbs (0.4 kg) |
| Voltage | 30 V |
| Wire Gauge | 30 |
| Cable Type | VGA |
| Color | Black |
All other specifications 12
| Connector 1 | (1) VGA Male(1) VGA Male |
| Connector 2 | (1) VGA Male(1) VGA Male |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG RatedFT4 Rated |
| Product Type | Cable |
| UPC | 757120502142 |
| Video Input Support | VGA |
| Video Output Support | VGA |
| Video Resolution | QXGA (2048x1536) |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Can this VGA cable be used for in-wall installations?
Yes, the CG50214 features a CMG-rated and FT4-rated PVC jacket specifically designed for in-wall applications.
What is the maximum resolution supported by the CG50214?
This cable supports video resolutions up to QXGA (2048x1536) and utilizes all 15 pins to support EDID and DDC2 (E-DDC) signals.
Will this cable work in tight spaces like projector mounts?
The CG50214 is equipped with low-profile, rounded connectors to assist with installation in cramped areas like projector mount poles.
Is the CG50214 compliant with environmental and safety standards?
This product carries REACH, RoHS, and TSCA certifications, and is compliant with NDAA 889 and Prop 65.
How long is the CG50214 cable?
The CG50214 is a 12 ft (3.7 m) cable with a 0.33 in (8.5 mm) diameter and a 2.01 in (51 mm) bend radius.
