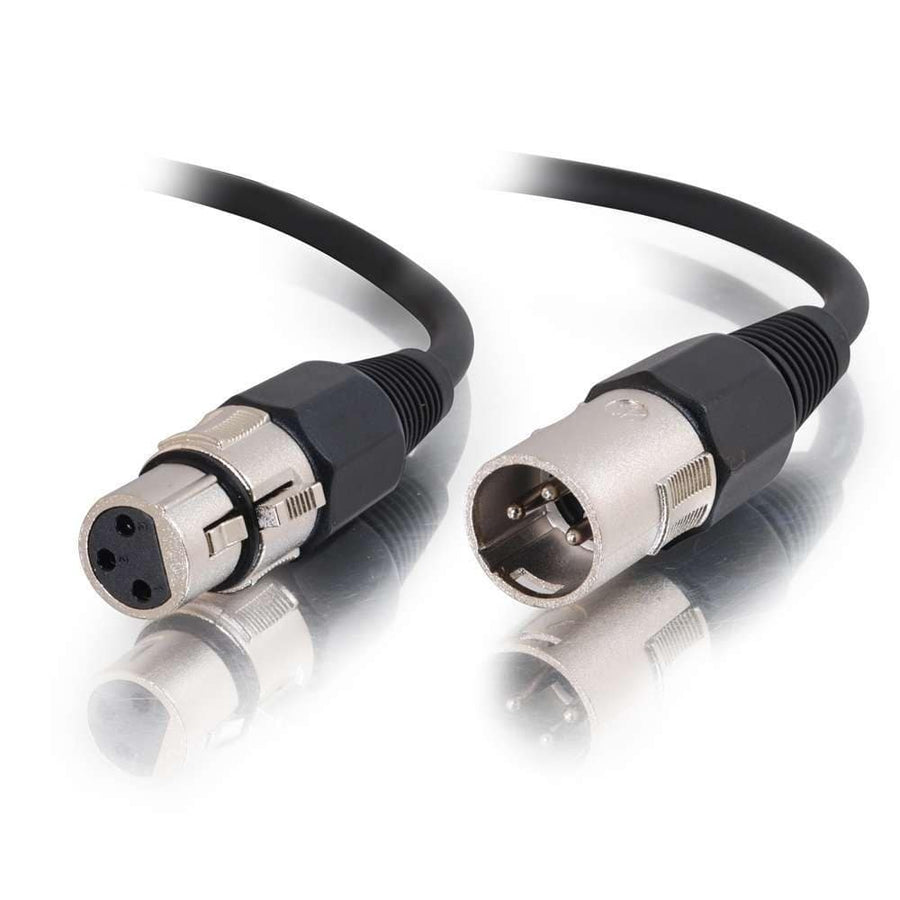

12ft (3.7m) Pro-Audio XLR Male to XLR Female Cable
Professional 12 ft (3.7 m) XLR male to XLR female audio cable with 22 AWG conductors and dual shielding
The CG40060 is a professional-grade XLR male to XLR female audio cable designed to connect unbalanced sources to balanced XLR inputs. This 12 ft (3.7 m) cable is constructed with 22 AWG twisted pair conductors to ensure signal integrity over the length of the run. To protect the signal from electromagnetic interference, the cable utilizes a dual-shielding design consisting of an aluminum foil shield combined with a 60% copper braid. The outer jacket is made of highly flexible 0.24 in (6 mm) PVC, which helps prevent kinking and protects the internal conductors from damage during installation and frequent movement. The connectors feature solid brass construction with bright nickel plating to resist wear during repeated reconfiguration of audio equipment. To protect the solder joints and contacts from age and mechanical stress, the XLR ends are equipped with chuck strain relief, while the series also incorporates spring strain relief for 1/4in plug variants.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.54 lbs (0.2 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 12
| Wire Gauge | 22 |
| Cable Type | AudioXLR |
| Color | Black |
| Connector 1 | (1) XLR 3-pin Male(1) XLR 3-pin Male |
| Connector 2 | (1) XLR 3-pin Female(1) XLR 3-pin Female |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120400608 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the construction of the CG40060 cable shielding?
The CG40060 uses a dual-layer approach for maximum noise protection, featuring both an aluminum foil shield and a 60% copper braid.
Is the CG40060 suitable for professional audio signal paths?
Yes, this is a pro-audio cable that uses 22 AWG twisted pair conductors and is designed to connect unbalanced sources to balanced XLR inputs.
What is the operating temperature range for this cable?
This cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
What materials are used in the connector and jacket construction?
The connectors are made of nickel-plated solid brass, and the cable is encased in a flexible 0.24 in (6 mm) PVC jacket.
Are there other lengths available in this XLR series?
Yes, this series is available in 3 ft, 5 ft, 6 ft, and 25 ft lengths.
