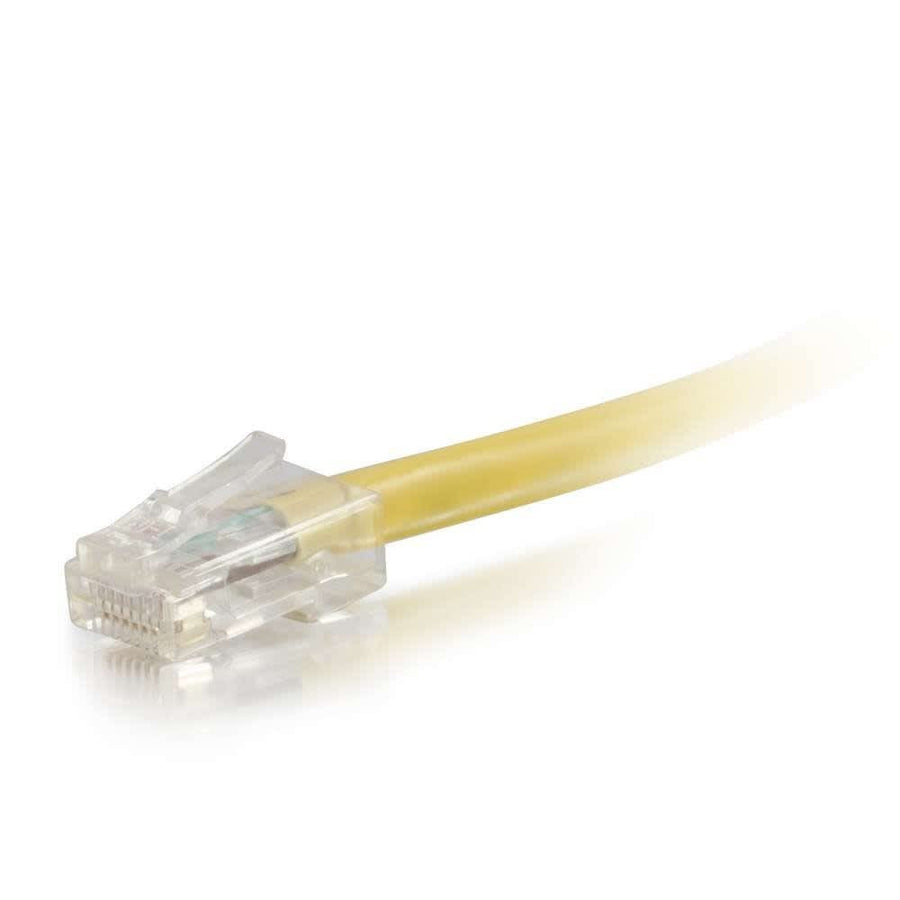

12ft (3.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
12ft Cat6 unshielded UTP Ethernet patch cable, yellow PVC jacket, T568B wiring, stranded copper conductors
The C2G CG04179 is a 12ft (3.7m) Cat6 non-booted unshielded UTP Ethernet network patch cable designed for high-bandwidth applications including voice, data, and video distribution. Built to meet all Cat6 TIA/EIA standards, this cable is engineered to reduce impedance and structural return loss (SRL) through bonded individual pairs that maintain twist-spacing up to the termination point. This design significantly minimizes Near-End Crosstalk (NEXT) levels, making it suitable for Gigabit computer networks. This specific model features a yellow PVC jacket and utilizes 24 AWG stranded copper conductors for reliable connectivity. The cable terminates in two RJ-45 male connectors following the T568B wiring scheme. With a 0.24 in (6 mm) diameter, this unshielded cable is intended for indoor use where standard jacket ratings are acceptable and color-coding is required to differentiate network segments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.32 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041795 |
| Certifications | CECENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the C2G CG04179?
This patch cable uses the T568B wiring scheme and features RJ-45 male connectors on both ends.
Is this cable shielded or unshielded?
The CG04179 is an unshielded (UTP) Cat6 cable designed to reduce impedance and structural return loss.
What is the conductor material and gauge used in this cable?
It is constructed from stranded copper conductors with a 24 AWG wire gauge.
Will this cable work for Gigabit Ethernet networks?
Yes, it meets Cat6 TIA/EIA standards for bandwidth-intensive Gigabit computer networks.
What are the compliance and certification details for this SKU?
This product carries CE, REACH, and RoHS certifications and is compliant with NDAA 889 and TSCA.
