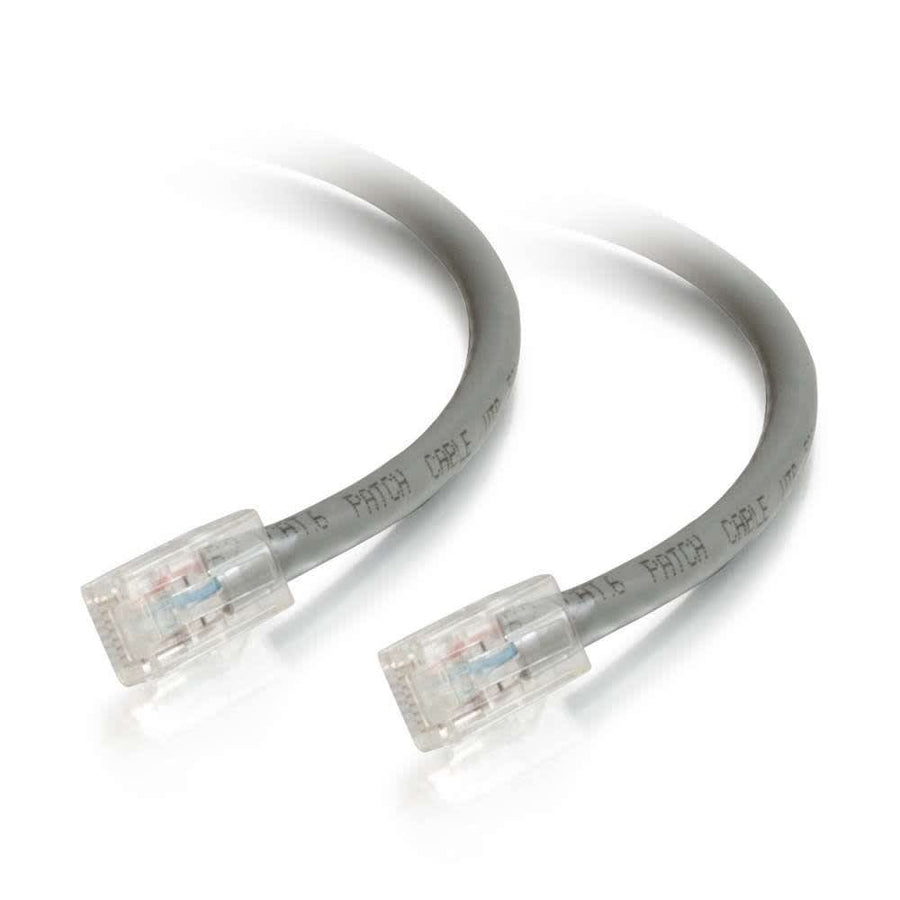

12ft (3.7m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Gray
12 ft (3.7 m) Cat6 UTP unshielded patch cable with Gray PVC jacket and RJ-45 male connectors
The C2G CG04074 is a 12 ft (3.7 m) Cat6 unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This cable is engineered for fast Ethernet and Gigabit computer networks, meeting all Cat6 TIA/EIA standards. To minimize Near-End Crosstalk (NEXT) levels, the design utilizes high-quality copper stranded conductors. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line up to the termination point, which helps reduce impedance and structural return loss (SRL). This specific SKU features a non-booted connector type and a Gray PVC jacket. The cable utilizes a T568B wiring scheme and carries a temperature rating of 75°C. With a 0.24 in (6 mm) cable diameter, this gray patch cable is suitable for organized network environments where color-coding is required to identify specific service runs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.33 lbs (0.2 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120040743 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for the CG04074?
The CG04074 uses the T568B wiring scheme for its RJ-45 male connections.
Is the CG04074 a shielded or unshielded cable?
This is an unshielded UTP (Unshielded Twisted Pair) Cat6 patch cable.
What is the jacket material and temperature rating?
The cable features a PVC jacket with a temperature rating of 75°C.
How long is this specific patch cable?
This model is 12 ft (3.7 m) in length.
Does this cable support Gigabit Ethernet?
Yes, it is designed for high-bandwidth Gigabit computer networks and meets Cat6 TIA/EIA standards.
