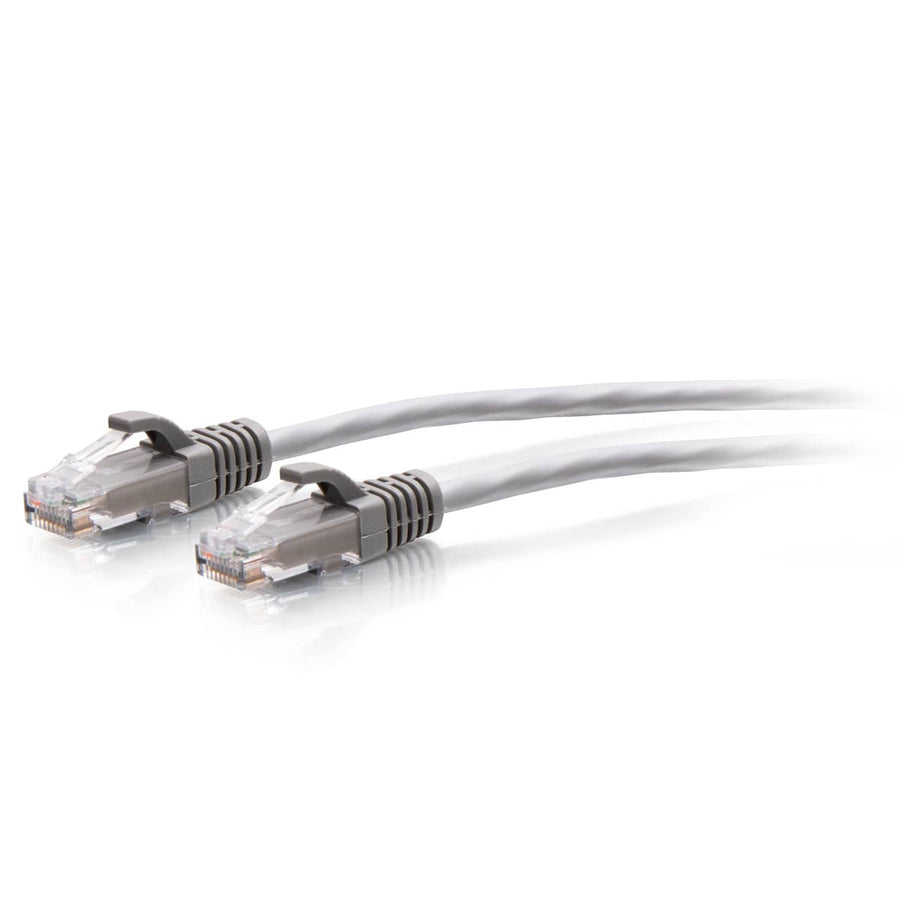

12ft (3.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
12ft Cat6a slim UTP patch cable, 28AWG stranded copper, featuring a snagless boot for high-density networking environments
The C2G30121 is a 12ft (3.7 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments such as datacenters and large conference rooms. This cable utilizes 28AWG stranded copper conductors, which significantly reduces the cable diameter to 0.19 in (4.8 mm) ± 0.15mm (about 0.01 in). This slim profile allows for increased airflow in crowded racks compared to standard Cat6 cables and provides the flexibility needed for tight space installations. Each end features an RJ-45 Male connector with a PVC snagless hood to prevent accidental snags and provide strain relief during installation. This Cat6a cable supports data transfer rates of up to 10 GBPS and is rated for use in PoE and VoIP applications. It meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. This gray cable is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301219 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will the C2G30121 fit in high-density racks or enclosures?
Yes, the 28AWG slim construction has a 0.19 in (4.8 mm) diameter, which increases airflow and provides the flexibility required for tight spaces like the ENP2050NA or ENP3050NA enclosures.
Is this Cat6a cable suitable for PoE or VoIP applications?
Yes, this Cat6a cable is designed to support Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) requirements.
What is the maximum data transfer rate for this cable?
The C2G30121 supports data transfer rates of up to 10 GBPS.
What do I need if I am installing this in a surface mount box?
For surface mounting, this cable can be used with compatible hardware such as the WP3506WH 6-Port Surface Mount Box or the CG03833 2-Port Keystone Jack Surface Mount Box.
Does this cable meet international electrical standards?
Yes, this cable meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements.
