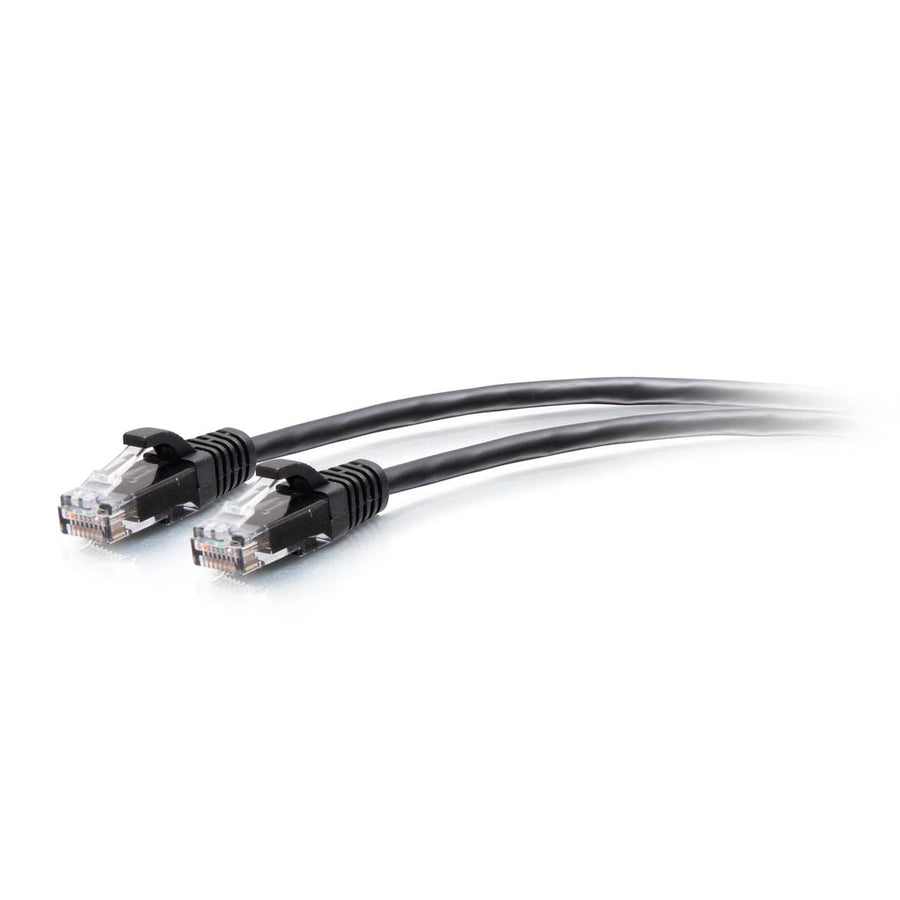

12ft (3.6m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
12ft Cat6a slim UTP patch cable with 28AWG stranded copper conductors and snagless boots
The C2G30149 is a 12ft (3.7 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments. Featuring 28AWG stranded copper conductors, this cable offers significantly increased flexibility compared to standard Cat6 cables, making it suitable for tight-space installations in datacenters or large conference rooms. The slim 0.19 in (4.8 mm) diameter reduces the cable surface area, which assists in increasing airflow within crowded enclosures. Each RJ-45 male connector is equipped with a molded PVC snagless boot to provide strain relief and prevent accidental snags during installation. This Cat6a cable supports data transfer rates up to 10 GBPS and is designed to meet ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. The black PVC jacket and gold-plated contacts ensure reliable connectivity for high-bandwidth applications like HDBaseT, PoE, and VoIP.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 12 ft (3.7 m) |
| Shield Type | UTP |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301493 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
Questions about this part
Will the C2G30149 work with PoE and VoIP systems?
Yes, the Cat6a technology and 28AWG construction make this cable suitable for Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications.
What is the difference between this and standard Cat6 cables?
This Cat6a cable provides five times more power than Cat5e and doubles the minimum bandwidth of standard Cat6, supporting speeds up to 10 GBPS.
What do I need to buy to complete my installation?
Compatible components include the CG37199 24-Port Cat6 110-Type Patch Panel or the WP3506WH 6-Port Surface Mount Box.
How does the snagless boot help during installation?
The molded PVC snagless boot prevents unwanted cable snags during installation and provides extra strain relief for the RJ-45 connectors.
Where can I find technical documentation for this cable?
Detailed performance information is available in the Cat6a Slim Patch Cable Series Datasheet (PDF) or the C2G Ethernet Patch Cable Matrix (PDF).
