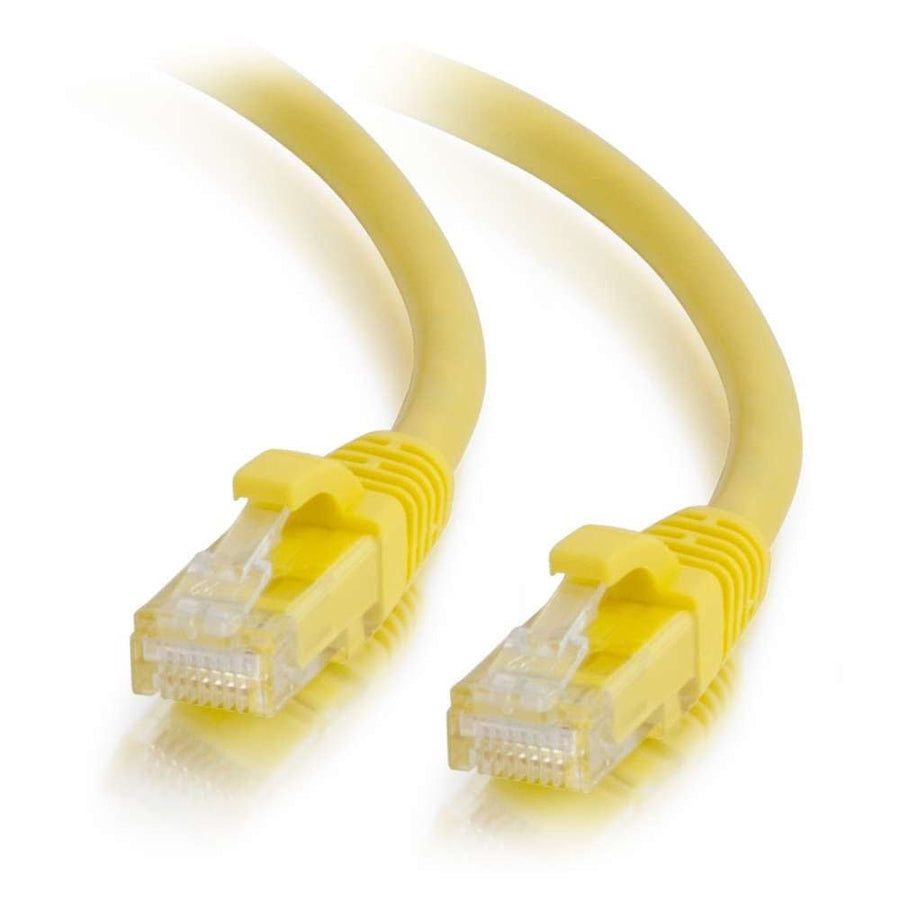

125ft (38.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Yellow
125ft Cat6 snagless patch cable in yellow, featuring stranded copper conductors and UTP shielding for Gigabit network applications
The C2G CG27198 is a 125 ft (38.1 m) Cat6 snagless patch cable designed for high-bandwidth voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This unshielded UTP cable uses stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. To maintain signal integrity, each individual pair is bonded together to preserve twist-spacing throughout the entire 125 ft length right up to the RJ-45 termination points. This construction helps drastically reduce both impedance and structural return loss (SRL) in accordance with all Cat6 TIA/EIA standards. Each connector is housed in a molded PVC snagless boot, which provides extra strain relief and prevents the release tabs from catching on other cables during installation or removal. This yellow jacketed cable is part of a larger series available in 10 different colors for easy network identification.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 125 ft (38.1 m) |
| Shield Type | UTP |
| Shipping Weight | 3.4 lbs (1.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120271987 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G CG27198 cable work for Gigabit networking?
Yes, this Cat6 cable is built for bandwidth-intensive applications including Gigabit computer networks for voice, data, or video distribution.
What is the wiring scheme for the CG27198?
The CG27198 uses the T568B wiring scheme with RJ-45 male connectors on both ends.
Does this cable include protection for the connector clips?
Yes, the snagless design features a molded boot that protects the clips and provides additional strain relief during plugging and unplugging.
Is this cable shielded or unshielded?
This is an unshielded (UTP) cable using stranded copper conductors to manage impedance and reduce return loss.
What other color and length options are available in this series?
The Cat6 Snagless Patch Cable series is available in 10 different colors and lengths up to 150ft.
