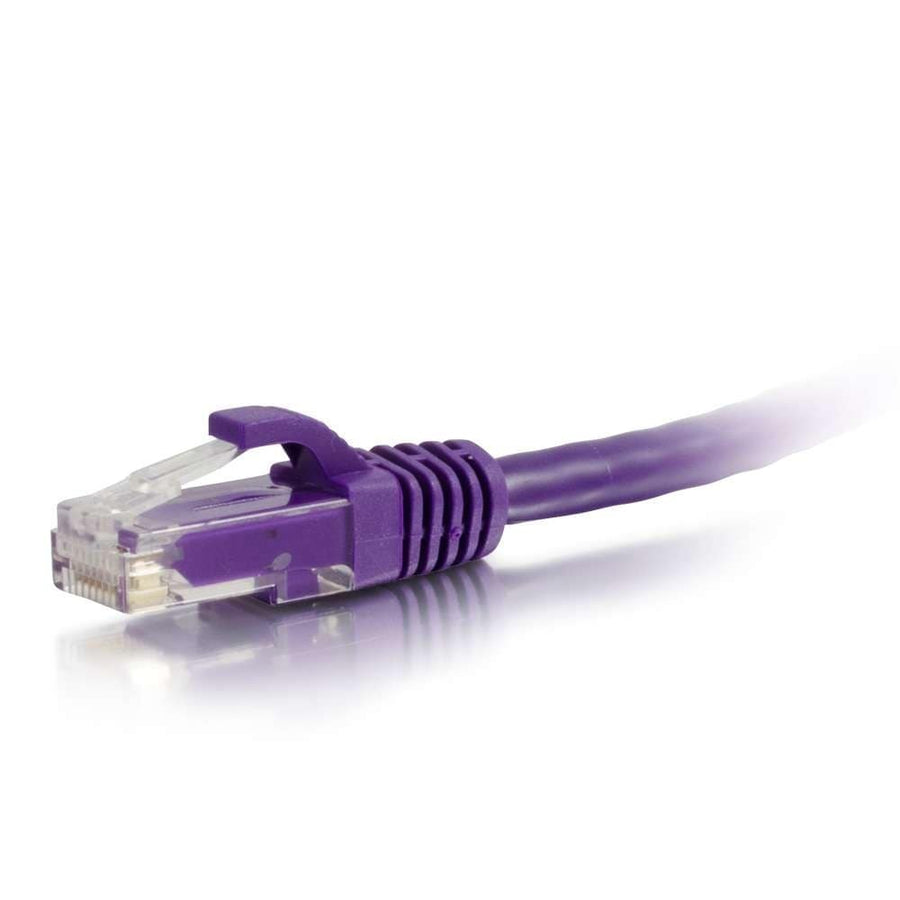

125ft (38.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Purple
125ft (38.1 m) Cat6 Unshielded UTP Ethernet Patch Cable in Purple with snagless boots
The C2G CG27808 is a 125 ft (38.1 m) Cat6 Unshielded UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This purple cable features a stranded copper conductor and a 24 AWG wire gauge to support high-performance connectivity. To maintain signal integrity and meet Cat6 TIA/EIA standards, each individual pair is bonded together to preserve twist-spacing through the termination point. This construction minimizes Near-End Crosstalk (NEXT) levels, reduces impedance, and lowers structural return loss (SRL). For ease of installation in high-density environments, the cable is equipped with snagless PVC connector hoods that protect the RJ-45 clips from damage during plugging and unplugging. This snagless design also provides additional strain relief for the terminations. The cable uses a T568B wiring scheme and features a PVC jacket with a 0.24 in (6.2 mm) diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 125 ft (38.1 m) |
| Shield Type | UTP |
| Shipping Weight | 3.34 lbs (1.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278085 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum length for this Cat6 cable series?
While this specific SKU is 125 ft (38.1 m), the series is available in lengths up to 150 ft.
Will the snagless boot protect my connection during installation?
Yes, the molded, snagless boot design protects the RJ-45 clips from snapping and provides extra strain relief.
Does this cable support Gigabit network speeds?
Yes, this Cat6 cable is designed for Gigabit computer networks requiring high-bandwidth distribution.
What color is the jacket on SKU CG27808?
This specific part number is Purple, part of a series available in 10 different colors for easy network color-coding.
What is the wiring standard for this patch cable?
The CG27808 follows the T568B wiring scheme using unshielded twisted pair (UTP) construction.
