125ft (38.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange

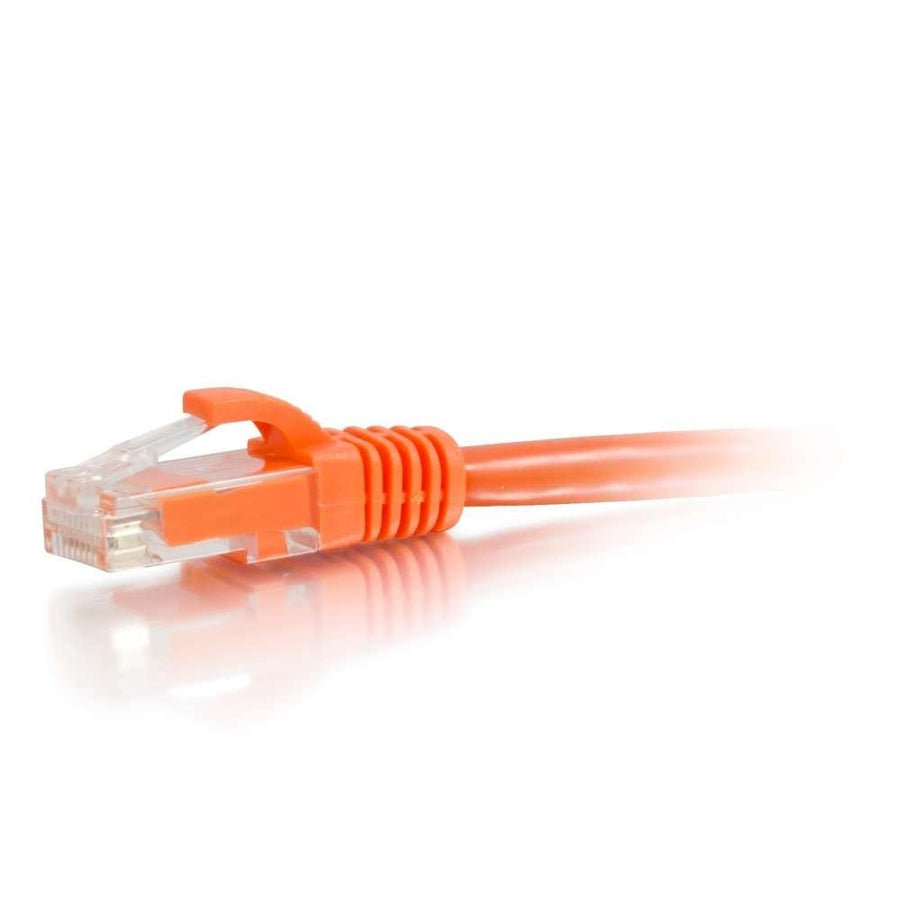

125ft Cat6 snagless UTP patch cable in orange with stranded copper conductors and RJ-45 male connectors
The C2G CG27818 is a 125ft (38.1 m) Cat6 snagless UTP Ethernet network patch cable designed for bandwidth-intensive applications including voice, data, and video distribution in Gigabit networks. This cable utilizes stranded copper conductors to minimize Near-End Crosstalk (NEXT) and meets all Cat6 TIA/EIA standards. It features a T568B wiring scheme and unshielded twisted pair (UTP) construction. Each individual pair is bonded to maintain twist-spacing up to the termination point, which helps reduce impedance and structural return loss (SRL). The cable has a 0.24 in (6.2 mm) diameter and a PVC jacket. For protection during installation, the RJ-45 male connectors are equipped with a molded, snagless PVC boot to provide strain relief and prevent damage to the clips when plugging or unplugging. This orange cable is part of a series available in up to 150ft lengths and 10 different colors for network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 125 ft (38.1 m) |
| Shield Type | UTP |
| Shipping Weight | 3.31 lbs (1.5 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120278184 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this CG27818 cable work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for Gigabit computer networks requiring high bandwidth for voice, data, or video distribution.
What is the difference between this and other C2G Cat6 cables?
The CG27818 is an orange, 125 ft snagless UTP cable; the C2G series offers various lengths up to 150 ft and 10 different colors.
Does the snagless boot provide extra protection?
The molded PVC snagless boot provides extra strain relief and prevents the RJ-45 clips from being damaged during installation and handling.
What wiring standard does this patch cable use?
This patch cable is built using the T568B wiring scheme.
Is this cable rated for plenum environments?
No, this cable features a Standard / Non-Rated PVC jacket.
