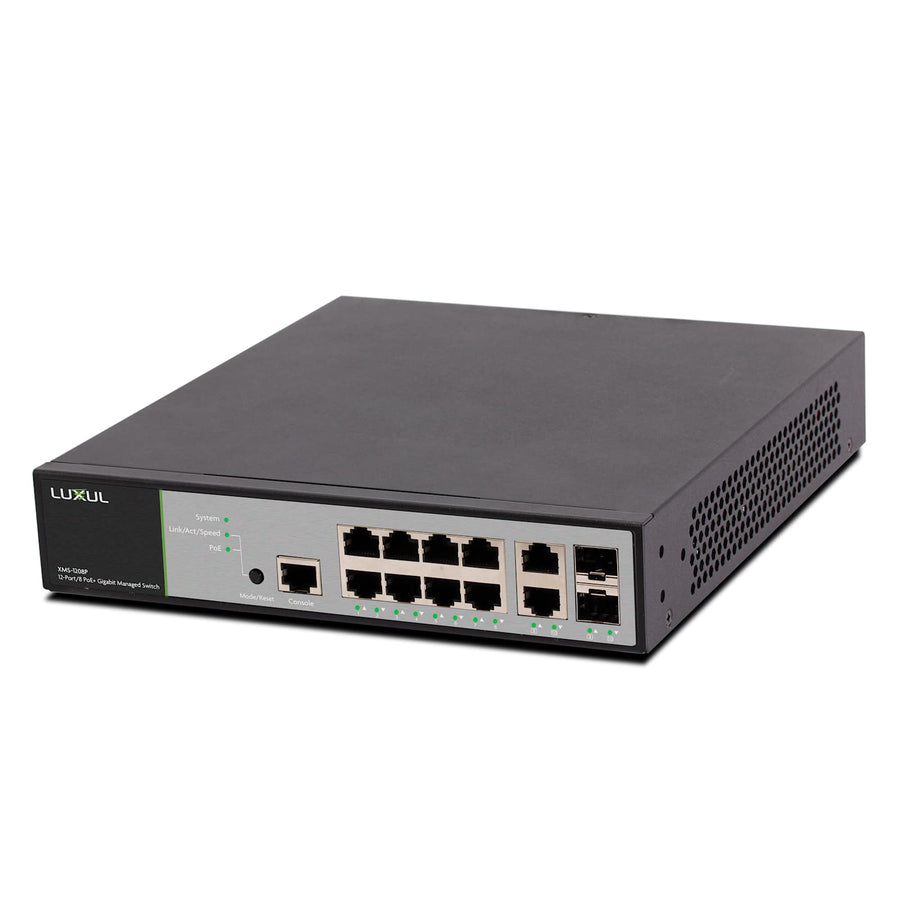

12 Port/ 8 PoE+ Front-Facing Rackmount Switch with US Power Cord
Managed 12-port PoE+ switch with 8 PoE+ ports, 130W power budget, and Layer 3 static routing for professional AV deployments
The Luxul XMS-1208P is a 12-port managed PoE+ switch designed for professional security and small business network deployments. This rackmount unit features 8 Gigabit 802.3af/at PoE+ ports with a 130W power budget, providing reliable power for VoIP phones, security cameras, and other PoE-enabled devices. For network backbone connectivity, the switch includes two Gigabit Ethernet uplink ports or two 1 Gigabit SFP ports, allowing for flexible fiber or copper integration. The XMS-1208P offers a 28 Gbps switching capacity and supports Layer 3 static routing and 802.1Q VLAN with trunking to simplify network segmentation. This model is built for silent, fan-less operation and includes PoE Self-Healing with per-port auto-recovery and power scheduling for improved device uptime. It is TAA compliant and features front-facing ports for easier management in a rack environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1.73 in (4.4 cm) |
| Length | 9_45 in |
| Max Power Consumption | 168 W |
| PoE Power Budget | 130 W |
| Product Weight | 4.6 lbs (2.1 kg) |
| Switching Capacity | 28 GBPS |
| Width | 8.66 in (22 cm) |
| Connection Type | Wired |
All other specifications 18
| Ethernet Port Type | 2 Uplink8 PoE |
| Jumbo Frame Support | 10056 B |
| Layer Support | L2L3 |
| Multicast | IGMP v1/2/3QuiererSnooping |
| Number of Fiber SFP Ports | 2 |
| Number of Ports | 8 |
| PoE Self Healing | Per Port Basis |
| Port Location | Front |
| Power Cord | US Cord |
| Spanning Tree | MSTPSTP RSTP |
| Special Features | PoE Self Healing |
| SPF Port Type | 2 x 1 Gigabit |
| Switch Type | ManagedPoE+ |
| TAA Compliant | Yes |
| UPC | 655003921137 |
| VLAN Compliance | 802.1Q |
| VLAN ID | 4094 |
| Certifications | CB ReportCECE-EMCCE-LVDFCCICNDAA 889RCMRoHSTAAUKCA |
Resources
Questions about this part
Will the XMS-1208P fit my PoE security camera setup?
Yes, the XMS-1208P provides 8 Gigabit 802.3af/at PoE+ ports with a total 130W power budget to support multiple PoE-powered security cameras.
Can I use fiber optic uplinks with this switch?
Yes, this switch includes 2 x 1 Gigabit SFP ports that can be used for fiber optic uplinks or as standard Gigabit Ethernet ports.
Does the XMS-1208P support VLAN trunking?
The XMS-1208P supports 802.1Q VLAN compliance with trunking, allowing for effective network segmentation and management.
How does PoE Self-Healing work on this model?
The switch features per-port PoE Self-Healing, which provides auto-recovery and power scheduling to maintain device connectivity.
Is the XMS-1208P suitable for government projects?
Yes, the XMS-1208P is TAA compliant and meets NDAA 889 requirements for professional and compliant installations.
