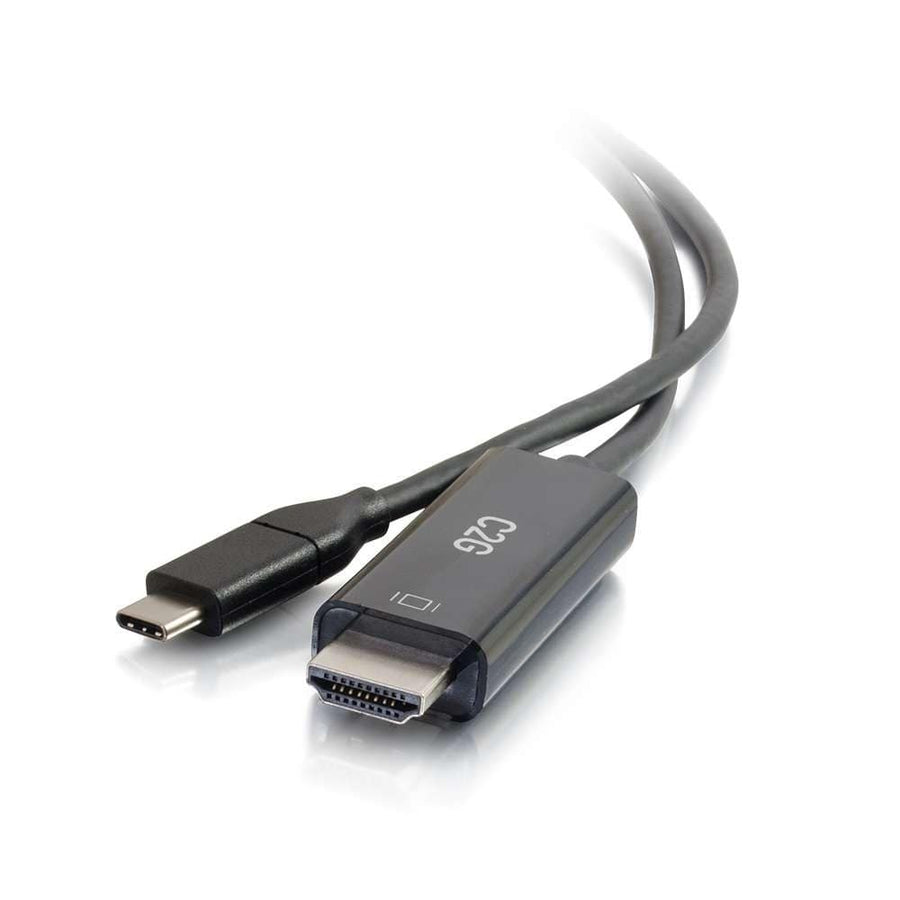

10ft (3m) USB-C® to HDMI™ Audio/Video Adapter Cable - 4K 60Hz
10ft USB-C to HDMI adapter cable supporting 4K @ 60Hz resolution for laptops and tablets
The CG26896 is a 10ft (3.1 m) USB-C to HDMI adapter cable designed to provide a direct audio/video connection between a USB-C device and an HDMI display such as an HDTV or projector. This cable features an integrated adapter in a single cable form factor, which eliminates the need for separate dongles and cables in professional workspaces or home environments. It is compatible with 3.1 USB-C and Thunderbolt™ 3 ports, supporting a wide range of devices including the Apple® MacBook, MacBook Air, MacBook Pro, and iPad Pro, as well as the Microsoft® Surface Book 2 and Surface Go. The cable supports video resolutions up to 4K @ 60Hz, ensuring high-quality image delivery. This plug-and-play solution requires no drivers for operation. The 34-gauge wire is protected by a black PVC jacket, and the reversible, symmetrical USB-C connector allows for easy, orientation-free insertion. This cable maintains a 0.17 in (4.2 mm) diameter and a 1.65 in (42 mm) bend radius.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.65 in (42 mm) |
| Cable Diameter | 0.17 in (4.2 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 85% RH (Non-Condensing) |
| Operating Humidity Min | 15% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 0.3 lbs (0.1 kg) |
| Storage Humidity Max | 85% RH (Non-Condensing) |
All other specifications 17
| Storage Humidity Min | 15% RH (Non-Condensing) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | 14 Fahrenheit (-10 Celsius) |
| Wire Gauge | 34 |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) HDMI Male(1) HDMI Male |
| Product Type | AdapterCable |
| TAA Compliant | No |
| UPC | 757120268963 |
| Video Input Support | HDMIUSB-C |
| Video Output Support | HDMIUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the CG26896 work with my MacBook or Surface device?
Yes, this cable is compatible with the Apple® MacBook, MacBook Air, MacBook Pro, iPad Pro, Microsoft® Surface Book 2, and Surface Go via USB-C or Thunderbolt™ 3 ports.
Does this cable support 4K resolution?
Yes, the CG26896 supports video resolutions up to 4K @ 60Hz (4096 x 2160).
What is the length and connector type of this cable?
This is a 10ft (3.1 m) cable featuring a reversible USB-C male connector and an HDMI male connector.
Do I need to install software to use this adapter cable?
No, this is a plug-and-play solution that requires no drivers to function.
Is the CG26896 NDAA compliant?
The product is listed with NDAA 889, RoHS, REACH, TSCA, and Prop 65 certifications.
