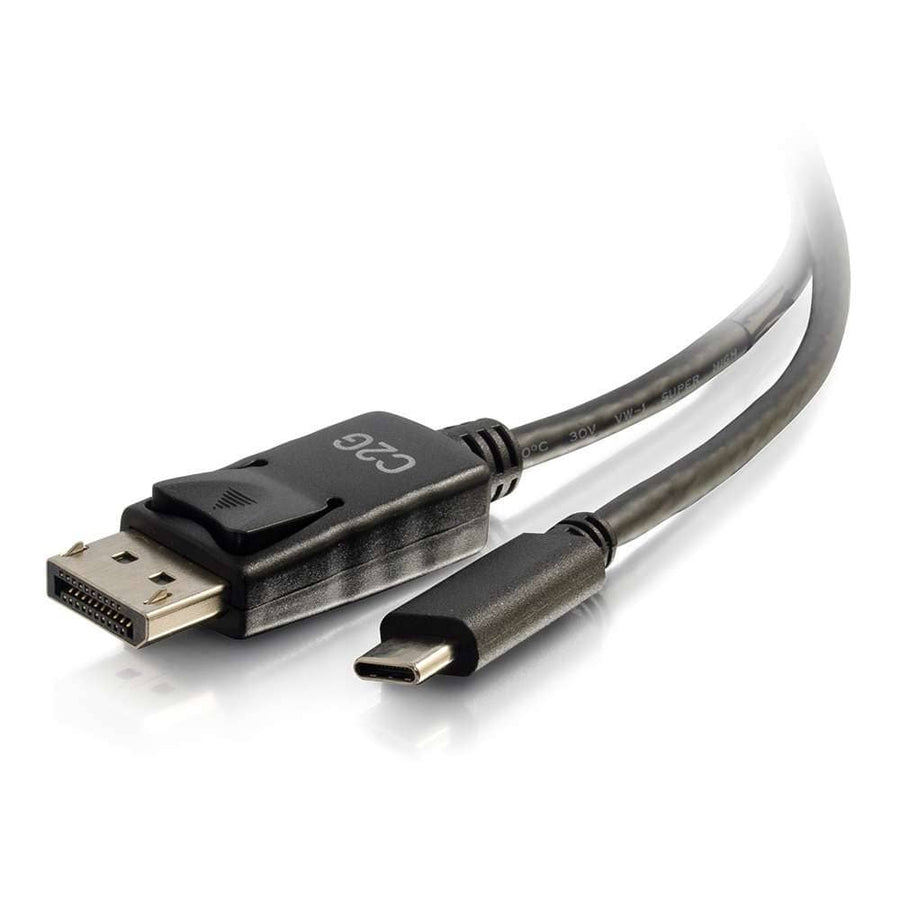

10ft (3m) USB-C to DisplayPort™ Adapter Cable 4K 30Hz - Black
10ft USB-C to DisplayPort adapter cable supporting 4K @ 30Hz resolution for laptops and projectors
The CG26905 provides a direct connection between a USB-C enabled laptop or mobile device and a DisplayPort input found on projectors, monitors, or displays. This 10 ft (3.1 m) cable is an active device that integrates the adapter directly into the cable form factor, eliminating the need for a separate dongle and a secondary cable in office, workspace, or classroom environments. It is compatible with USB 3.1 USB-C and Thunderbolt 3 ports, utilizing the audio/video support inherent in USB Type-C to transmit signals. This cable supports video resolutions up to 4K (4096 x 2160 at 30Hz) and 1080p. It features a reversible, symmetrical USB-C connector and a 0.19 in (4.7 mm) diameter PVC jacket. Designed for ease of use, this is a plug-and-play solution that requires no drivers for operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Cable Type | AdapterUSBVideo |
| Color | Black |
All other specifications 13
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) DisplayPort Male(1) DisplayPort Male |
| Product Type | Active DeviceAdapterCable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120269052 |
| Video Input Support | DisplayPortUSB-C |
| Video Output Support | DisplayPortUSB-C |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG26905 work with my Thunderbolt 3 laptop?
Yes, this adapter cable is compatible with both Thunderbolt 3 ports and USB 3.1 USB-C ports for direct video output.
What video resolution can I achieve with the CG26905?
This cable supports resolutions up to 4K (4096 x 2160 at 30Hz) and 1080p via the DisplayPort connection.
Do I need to install any software to use this cable?
No, this is a plug-and-play active device that does not require any drivers to function.
How long is the CG26905 cable?
The cable has a total length of 10 ft (3.1 m) with a 0.19 in (4.7 mm) diameter PVC jacket.
Is there a difference between this and other USB-C to DisplayPort cables?
The CG26905 is part of a series that includes different lengths and colors, such as white variants available in the same series.
