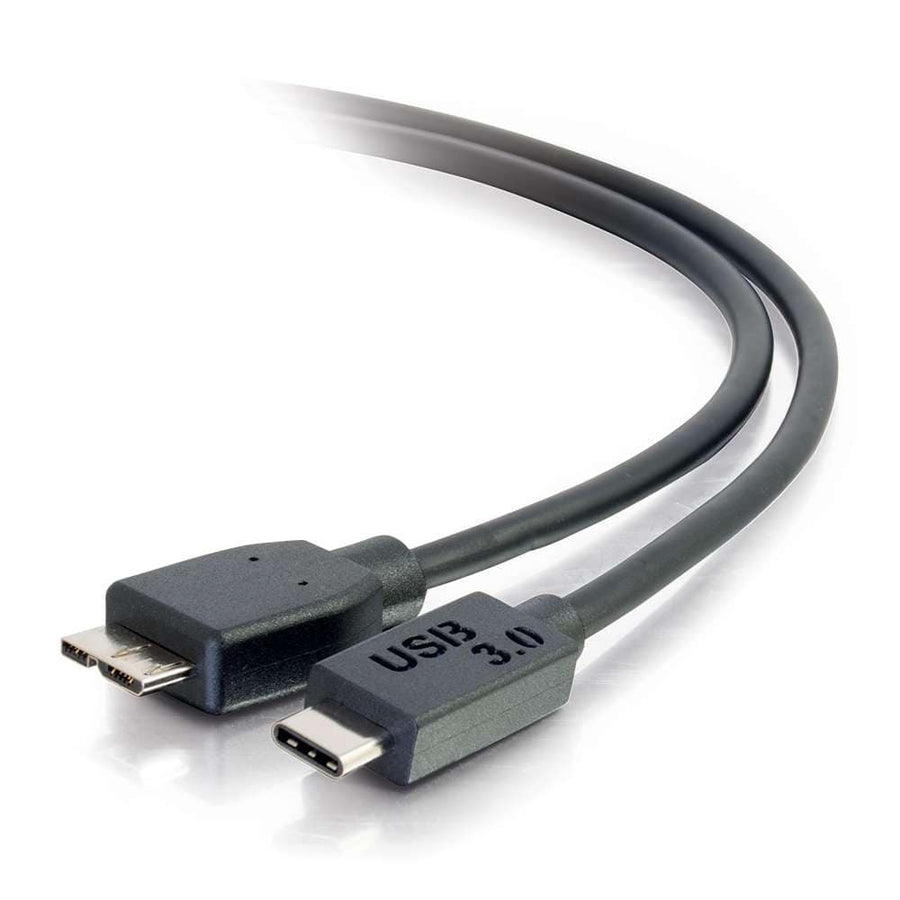

10ft (3m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB Micro-B Cable M/M - Black
10ft USB 3.0 (USB 3.2 Gen 1) USB-C to USB Micro-B Male to Male cable, 5Gbps data transfer rate
The C2G CG28864 is a 10ft (3.1 m) USB 3.0 (USB 3.2 Gen 1) USB-C to USB Micro-B Male to Male cable designed for high-speed communication between devices. It allows for connecting a smartphone, tablet, or other mobile device with a USB Micro-B port to a computer, tablet, or host device equipped with a USB Type-C port. This cable supports bidirectional signal transmission and data transfer rates up to 5 Gbps. It is designed for power delivery of up to 5 volts and 1 amp. The cable features a symmetrical USB Type-C connector to ensure ease of use, rated for up to 10,000 connection cycles. Construction includes a 30 AWG wire gauge and a PVC jacket with a cable diameter of 0.19 in (4.8 mm). This specific model is part of a series available in other lengths, such as 3 ft and 6 ft, but this 10 ft variant is optimized for longer reach. Note that while it supports USB 3.0 (USB 3.2 Gen 1), it is not compatible with USB 3.2 Gen 2 communication and features.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 1 Amp |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Humidity Max | 85% RH |
| Operating Humidity Min | 20% RH |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Storage Temperature | -13° to 158°F (-25°C to 70°C) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-C Male(1) USB-C Male |
| Connector 2 | (1) USB 3.0 Micro-B Male(1) USB 3.0 Micro-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 3.0 |
| UPC | 757120288640 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 5 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G CG28864 cable work for data transfer and charging?
Yes, this cable supports bidirectional signal transmission for data transfer rates up to 5 Gbps and provides power for charging up to 1 Amp at 5 volts.
What is the maximum length for this USB-C to Micro-B cable?
The CG28864 is a 10 ft (3.1 m) cable; however, this series is also available in 3 ft and 6 ft lengths.
Is this cable compatible with USB 3.2 Gen 2?
No, this cable is designed specifically to support USB 3.0 (USB 3.2 Gen 1) communication and features, and is not able to support USB 3.2 Gen 2.
What are the operating temperature and humidity ranges?
The cable is rated for an operating temperature of 32° to 122°F (0° to 50°C) and an operating humidity range of 20% to 85% RH.
Which document is best for technical submittals?
You can refer to the C2G-28864 Datasheet (PDF) provided in the resources for detailed technical information.
