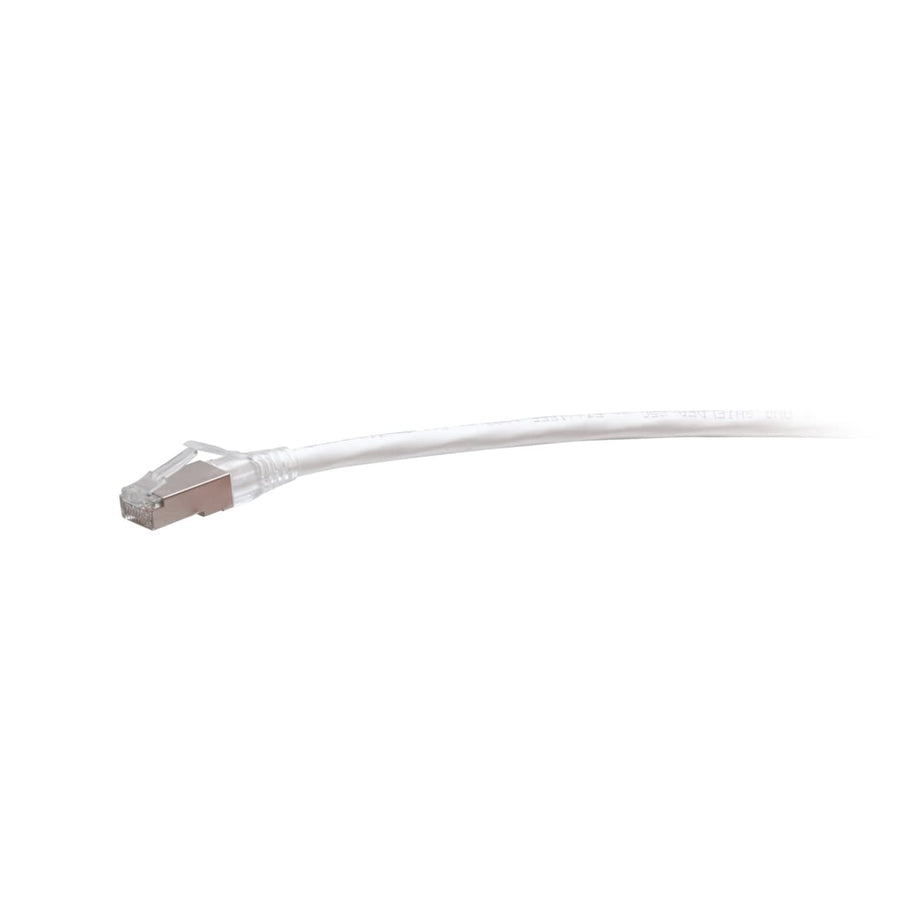

10ft (3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
10ft TAA-Compliant Cat6a shielded STP patch cable, white finish, featuring snagless RJ45 connectors for 10GBase-T networking.
The C2G43969 is a 10ft (3.1 m) TAA-Compliant Cat6a Snagless Shielded (STP) Network Cable designed for high-bandwidth 10GBase-T environments. This passive cable is constructed with made-in-the-USA stranded copper conductors and an aluminum foil shield to protect against electromagnetic interference (EMI), RFI, and alien crosstalk. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, making it suitable for high-speed network adapters, switches, routers, and patch panels. The cable features a 0.24 in (6 mm) diameter and a CMR rated PVC jacket, making it suitable for riser applications. For reliability in high-insertion cycle environments, the snagless RJ45 male connectors include a design that protects the clips from snapping, while 50-micron gold-plated contacts ensure signal integrity. This white cable is rated for operation in temperatures ranging from -4° to 167°F (-20° to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439691 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43969 TAA compliant for government contracts?
Yes, this is a TAA-Compliant cable, making it approved for use in United States government projects and facilities.
What is the maximum temperature range for this Cat6a cable?
This cable is rated for operating temperatures between -4°F and 167°F (-20°C to 75°C).
Will this cable work for 10 Gigabit Ethernet applications?
Yes, this cable is designed for 10GBase-T ports and meets ANSI/TIA-568.2-D standards for supporting 10GBASE-T networking.
Does this cable require a specific jacket rating for riser installation?
The C2G43969 features a CMR rated PVC jacket, which is the standard for riser-rated applications.
What is the difference between the STP shielding and standard cables?
This cable uses Shielded STP (Shielded Twisted Pair) with aluminum foil to reduce impedance, structural return loss (SRL), and interference from EMI and RFI.
