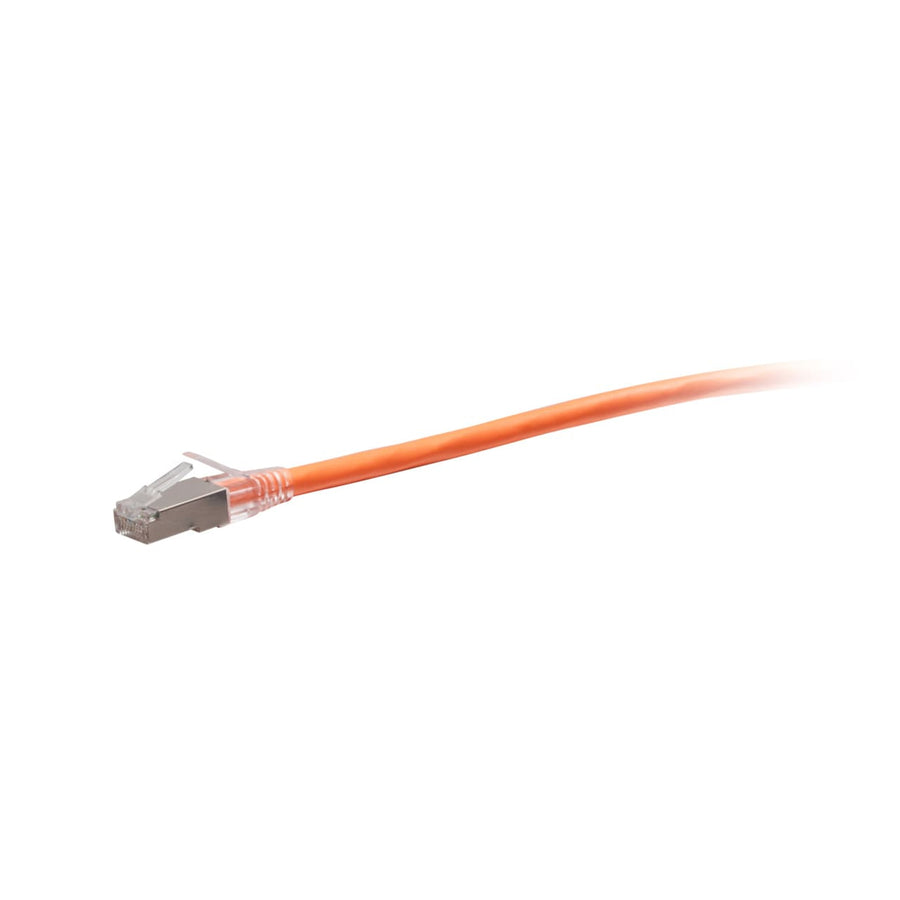

10ft (3m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
10ft Cat6a STP patch cable, snagless RJ45 connectors, orange, TAA-compliant for 10GBASE-T applications
The C2G43927 is a 10ft (3.1 m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable in orange, designed for high-speed 10GBASE-T networking environments. This passive, shielded STP cable uses stranded copper conductors with a 26 AWG wire gauge to help protect 10 Gigabit Ethernet connections from electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is constructed with made-in-the-USA raw cable and features 50-micron gold-plated contacts to maintain signal integrity over high-bandwidth applications. The snagless RJ45 connector design is built to protect the clips from snapping during high insertion cycles. This CMR-rated, riser-rated cable with a PVC jacket is suitable for various installation environments and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is an ideal solution for connecting network adapters, hubs, switches, routers, and patch panels in bandwidth-intensive setups.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439271 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43927 TAA compliant?
Yes, this cable is TAA compliant and is approved for use in United States government projects and facilities.
What type of shielding does this Cat6a cable use?
This is a Shielded STP (Screened Twisted Pair) cable designed to protect 10GBASE-T connections from EMI, RFI, and alien crosstalk.
Will this cable work for 10 Gigabit Ethernet?
Yes, it is designed for 10GBASE-T equipment, including network adapters, hubs, switches, routers, and patch panels, meeting ANSI/TIA-568.2-D standards.
What is the jacket rating for this orange cable?
This cable features a CMR rated riser jacket made of PVC material.
Does this cable have gold-plated contacts?
Yes, it features 50-micron gold-plated contacts to help improve signal integrity.
